DEYE 12KW MPPT INDY 12000 THREE Phase MPPT Hybrid Solar Inverter Three Phase High Voltage

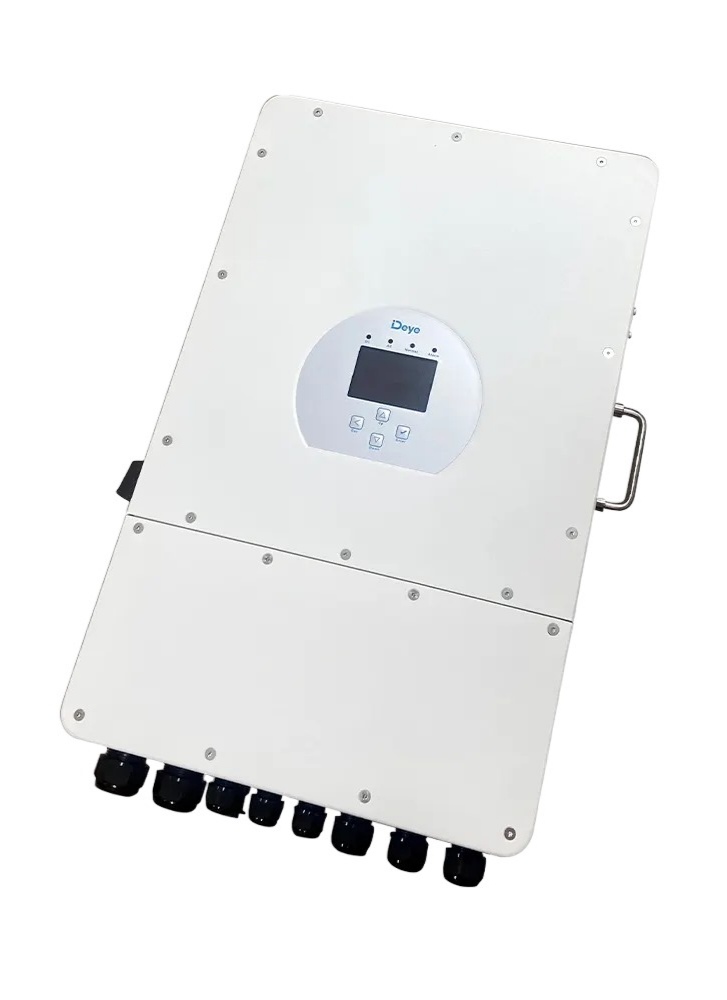

DEYE 12KW INDY THREE Phase Hybrid Inverter

48V low voltage battery, transformer isolation design.
6 time periods for battery charging/discharging.
Max. charging/discharging current of 240A.
Frequency droop control, Max.16pcs parallel.
DC couple and AC couple to retrofit the existing solar system.
Support storing energy from a diesel generator.
Supports three-phase unbalanced output.
Unique Smart Load application and Grid peak-shaving function.
Support max number of parallel of 16pcs

100% Unbalanced Output:
The series inverter supports unbalanced output.
Each phase Max. output power is up to 50%Pn. E.g. for the 12KW hybrid inverter, the A-phase Max. output power can reach 6KW.
Droop Control:
Adopts frequency droop control technology to ensure system reliability and stability.
With the droop characteristics of traditional diesel generators, and it can adjust the output power by changing the frequency and voltage.

Higher yields.
Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT designs, Max. efficiency of 97.6%.

User-friendly.
LCD Touch screen and buttons, easy operation.
Compatible with a lithium-ion battery and lead-acid battery.
Web browser and mobile App monitoring supported.

Reliable:
PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.
Smart:
Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.

Package Dimensions :

801 x 501 x768mm

Package include:

1 x DEYE 12KW INDY THREE Phase Hybrid Inverter
