Fivestar- A01-5000W 48V MPPT Powerful Plug and Play with 5.12Kw 51.2Kva 100Ah For The Office

INVERTER

Solar Charge Mode

• Rated power; 5000W
• Peak power; 7500w
• Output phase number; Single phase

GRID MODE

• Rate Input Voltage; 230VAC
• Input Voltage Range; 170-280VAC/90-280VAC
• Input Undervoltage Protection; 170±5VAC/90±5VAC
• InputOvervoltage Protection; 280V±5VAC
• Rated Input Frequency; 50Hz/60Hz
• Max.Input Current; 26A
• Efficiency; 92%max

PV Max/MPPT

• Max solar charging power: 6000W(input above 300V)
• DC Input: 48VDC
• AC Output: 230VAC ,50/60Hz
• PV Voltage Range: 120-500vdc
• MPPT Voltage Range: 120-430Vdc
• Max Input Current Limiting: 20A
• PV Array Maximum Open Circuit Voltage: 500VDC

BATTERY

Features

• Iron phosephate-lithium power battery
• Higher energy density, smaller volumn for household
• Support connected in parallel mode for expansion
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system(BMS): The battery packs built-in monitors its operation and prevents the battery from operating outside limitations.
• Expandability: This battery pack can easily expanded by adding expansion battery packs in parallel connection.

Specifications

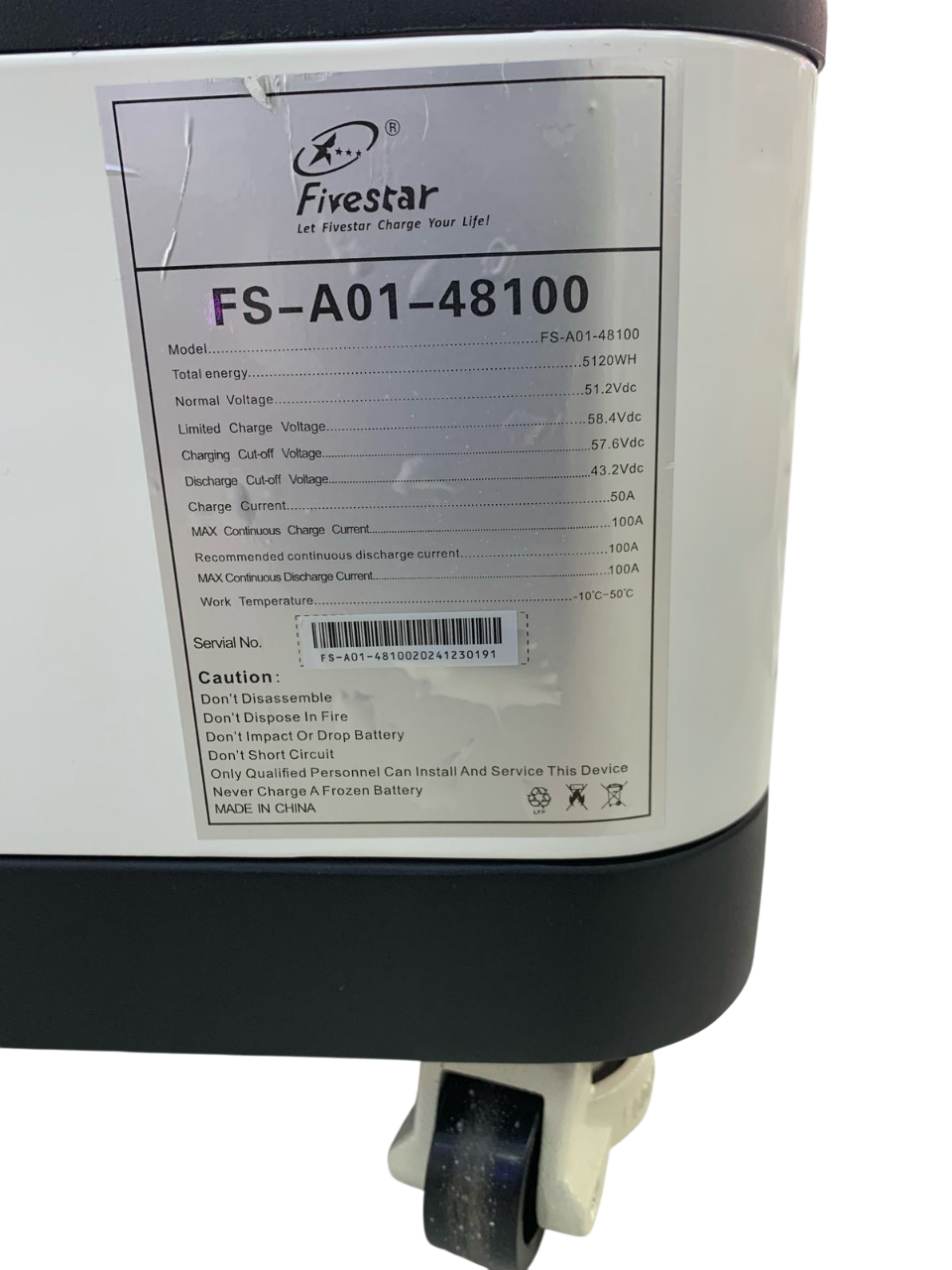

Model- FS-A01-48100

Usable Capacity- 5120WH

Rated Voltage- 51.2V

Voltage Range- 43.2-58.4

Max Continuous Change Current- 50A

Max Continuous Discharge Current- 100A

Max Output Power- 5120W

Recommended Output Power- 4500W

DOD- >95%

Model Communication- 1-4 in Parallel

Communication- 485/CAN

Ingress Protection- IP21

Cycles Life- >6000

2 year warranty

_____________________________________________________________________

Package Dimensions:

Product Dimension- 620 x 450 x 170mm(battery)

Package Dimension- 690 x 520 x 205mm(battery)

NW  48.1kgs(battery)

GW  50kgs(battery)

_____________________________________________________________________

Package Dimensions:

Product Dimension- 650 x 450 x 160mm(inverter)

Package Dimension- 670 x 500 x 240 mm(inverter)

NW  21kgs( inverter)

GW  23kgs (inverter)

_____________________________________________________________________

Package include:

1 x FS-A01-48100 Lithium Battery ( 690 x 520 x 205mm. 50kgs )

1 x 5kva 5000w 48v Inverter ( 670 x 50 x 240mm. 23kgs )

1 x Battery Base Wheel ( 690 x 520 x 170mm. 11.2kgs)

2 x Manual book for Inverter and Battery

2 x Battery Cable Red and Black

1 x Communication Cable

YOU CAN BUY EXTRA BATTERY FOR R16,500

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void
