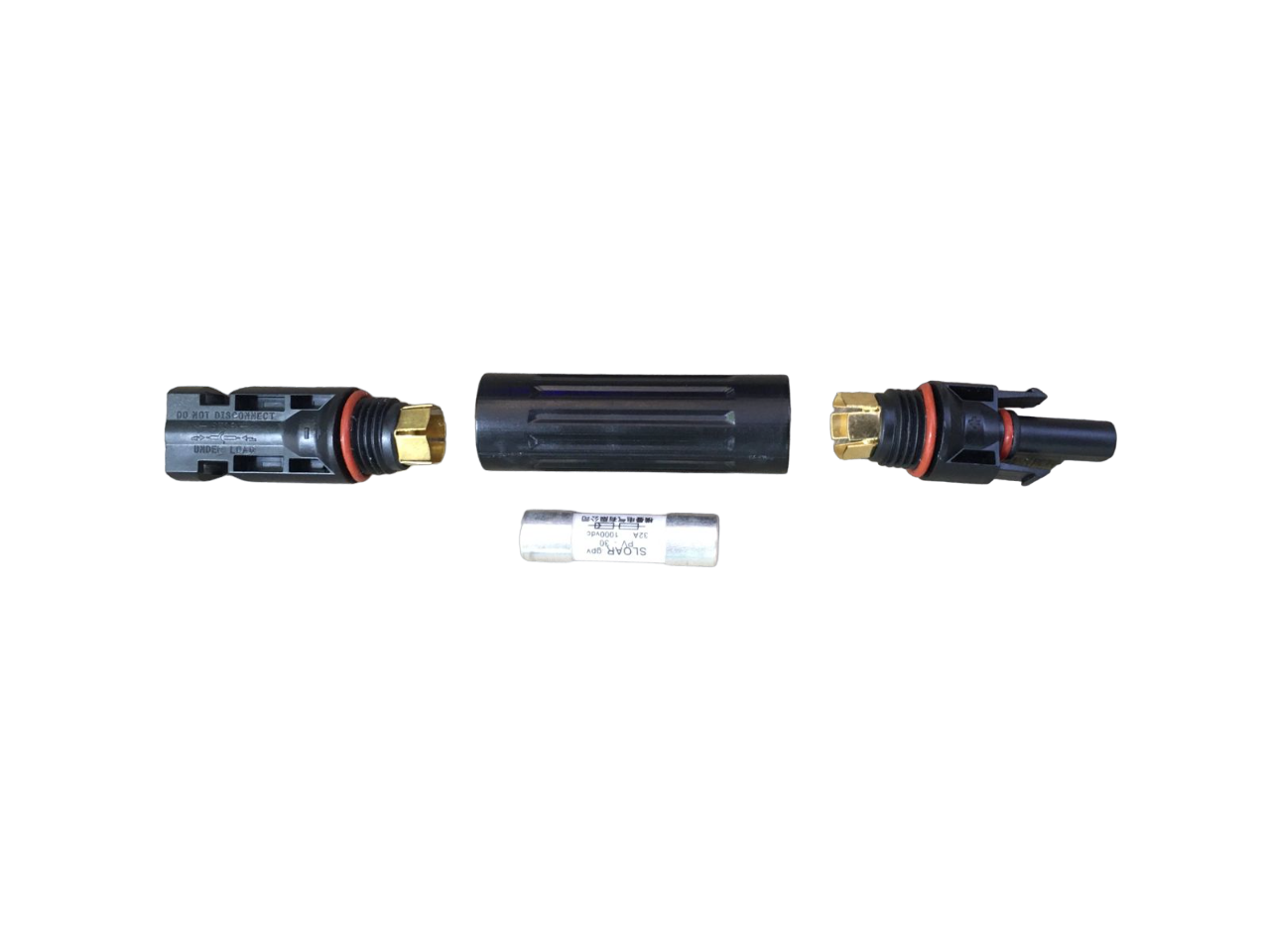

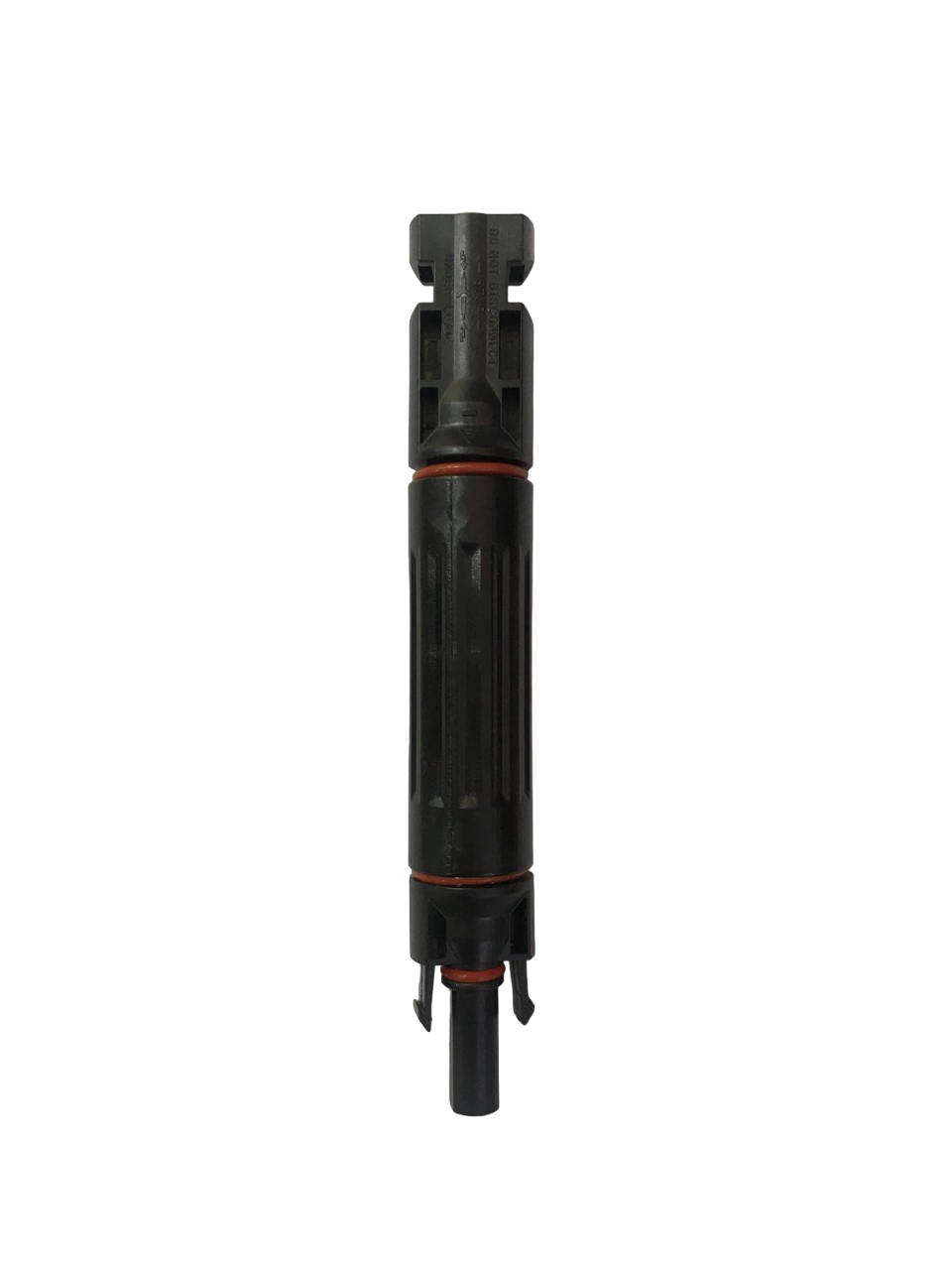

FS MC4 1-1 With Fuse 32A Solar DC Connector

Product Description

1000VDC Solar Fuse Connector 10A 15A 20A 30A Male to Female In-line Fuse Holder Connector Single Fuse

Features
100% Brand New And High Quality;
Compatible With Solar Connectors
Designed For Wide Range of DC Applications – Simple Plug & Play
All Weather Waterproof
10A 15A 20A 30A Solar PV In-Line Fuse Holder Waterproof w/ Fuse 20 Amp

Specifications

Model: MC4 Fuse
Contacts material: copper
Insulator Material: PC
Shape: Bar
Maximum working voltage:DC1000V
Current: 32A
Flame class: UL94-V0
Pollution degree: 2
Contact resistance: ≤ 5mm Ω
Shell Protection degree: IP65
Specification of Connecting Line: 1.5~6mm2
Ambient temperature range ： -40 � +85 ℃
Safety Level: class ‖
Insertion force: ≤ 50N
Withdrawal force: ≥ 50N
Dia of Pin:4.0

Package Dimensions:

6cm x 1cm x 6cm

Weight  0,006kg

Package include:

1 x MC4 1-1 With Fuse 32a Solar DC Connector
