Fivestar- PD0848-1P 8Kw 48V Single Phase Powerful Hybrid Inverter

Fivestar- PD0848-1P 8Kw 48V Single Phase Powerful Hybrid Inverter

Product Features

• Self-Consumption And Feed-in to The Grid.
• Auto Restart While AC is Recovering.
• Programmable Supply Priority For Battery Or Grid.
• Programmable Multiple Operation Modes: On Grid, Off Grid and UPS.
• Configurable Battery Charging Current/Voltage Based On Application by LCD Setting.
• Configurable AC/Solar/Generator Charger Priority by LCD Setting.
• Compatible With  Mains Voltage Generator Power.
• Overload/Over Temperature/Short Circuit Protection.
• Smart Battery Charger Designed For Optimized Battery Performance.
• With Remit Function, Prevent Excess Power Overflow To The Grid.
• Supporting WIFI Monitoring And Build- in 2 Strings Of MPPT Trackers
• Smart Settable Three Stages MPPT Charging For Optimized Battery Performance.
• Time To Use Function.
• Smart Load Function.

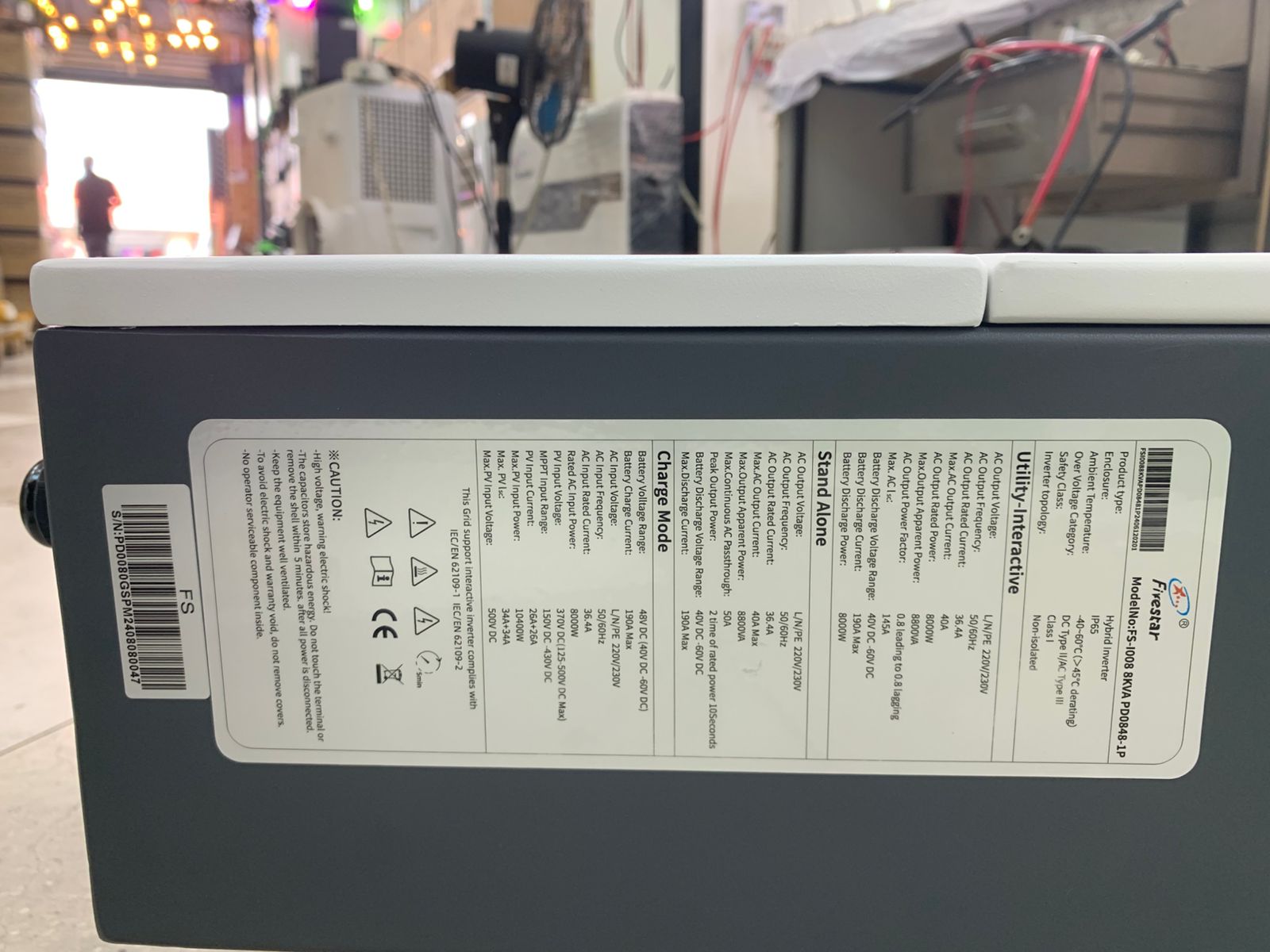

Model; FS-I008 8KVA PD0848-1P

Product Type– Hybrid Inverter

Enclosure– IP65

Ambient Temperature– 40-60 Degrees (<45 degrees caseous derating)

Over Voltage Category– DC Type II/AC III

Safety Class– Class I

Inverter Topology– Non-Isolated

Utility-Interactive

AC Output- Hybrid

AC Output Frequency- 50/60Hz

AC Output Rated Current- 36.4A

Max. AC Output Current- 40A

AC Output Rated Power- 8000W

Max. Output Apparent Power- 8800W

AC Output Power Factor- 0.8 leading to 0.8 lagging

Max. AC I sc- 145A

Battery Discharge Voltage Range- 40V DC -60V DC

Battery Discharge Current- 190A Max

Battery Discharge Power- 8000W

Stand Alone Data

AC Output Voltage- L/N/PE 220V/230V

AC Output Frequency- 50/60Hz

AC Output Rated Current- 36.4A

Max. AC Output Current- 40A Max

Max. Output Apparent Power0- 8800VA

Max. Continuous AC Passthrough- 50A

Peak Output Power- 2 time of Rated Power 10Seconds

Battery Discharge Voltage Range- 40V DC-60V DC

Max. Discharge Current- 190A Max

Charge Mode

Battery Voltage Range- 48V dc (40v -60V DC)

Battery Charge Current- 190A Max

AC Input Voltage- L/N/PE 220V/2320V

AC Input Frequency- 50/60Hz

AC Input Rated Current- 36.4A

Rated AC Input Power- 8000W

PV Input Voltage- 370V DC (125-500V DC Max)

MPPT Input Range- 150V DC -430V DC

PV Input Current- 26A+26A

Battery Data

Battery Voltage Range– 48Vdc(40-60Vdc)

Max. Charging and Discharging Current– 100/240Adc Max

Type of Battery– Lithium/Lead-acid

Warranty

2 Year Repair Warranty
All Inverters And Batteries Must Be Installed By a Qualified Electrical Wireman or Master Electrician With a Valid Registration With The Department of Labour. A valid Electrical Certificate Of Compliance (COC) Must Be Issued Once Installed, Specific To The Installation Of The Backup or Solar System. Any Warranty Claim Submitted Without Installation Photos, a Valid COC And Proof Of a Qualified wireman/Master Electrician Installing The Unit, Can Be Rejected And Will Render The Warranty Claim Null At Void.

Package

Inverter Dimension- 63 x 41.5 x 2

6cm

Box Dimension- 75 x 39 x 53cm

Inverter Weight- 31.7Kg

Box Weight- 36.7Kg

Inside the Box

1 x 8kw 48v Single phase Hybrid Inverter

1 x Wall Mount Bracket

1 x WI-FI-Plug(optional)

1 x Parallel Communication Cable

1 x Sensor Clamp

6 x Stainless steel Anti-Collision Bolt M8x80

DC+/DC- Plug Connectors Including Metal Terminal xN

1 x Manual Book

1 x L-type Hexagon Wrench
