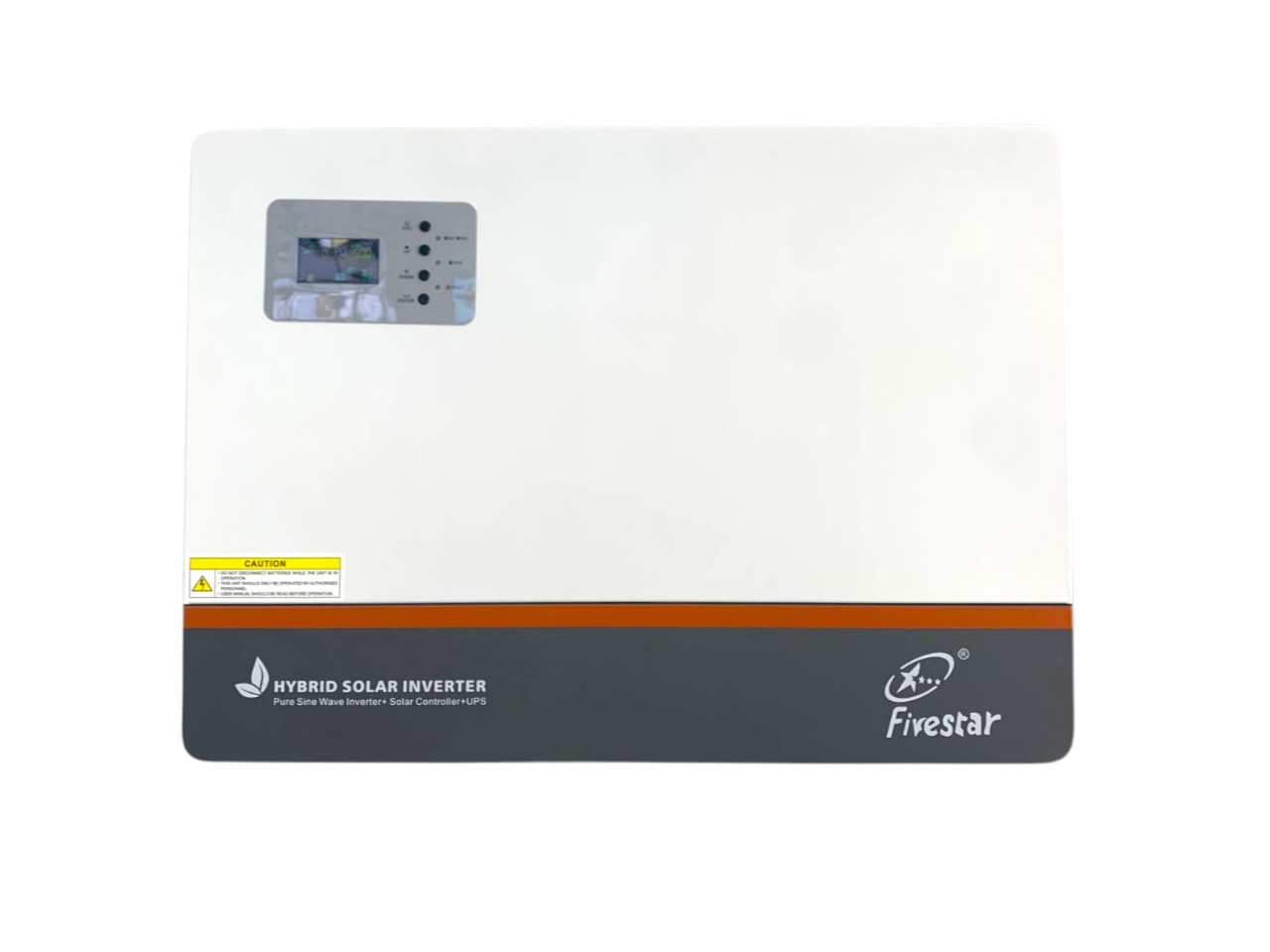

Fivestar-VJ-8,5KVA 6800W 48V Pure Sine Wave Hybrid Solar inverter

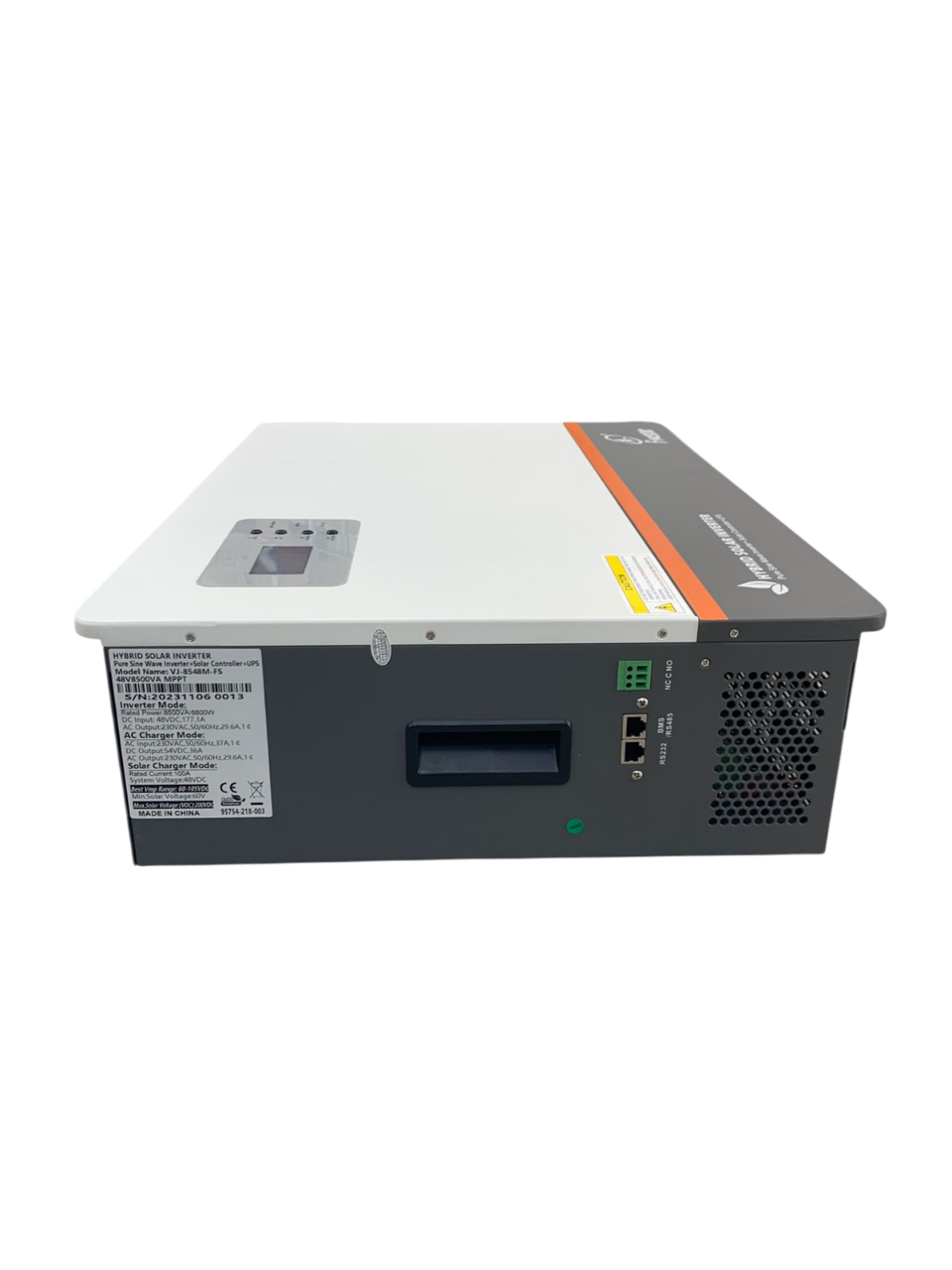

Features

• Power on/off Switch
• Ac input
• Ac output
• Pv input Battery
• Battery input
• Dry contact
• BMS/RS485 communication port
• Input breaker
• Battery terminal negative
• Battery terminal positive
• Fan

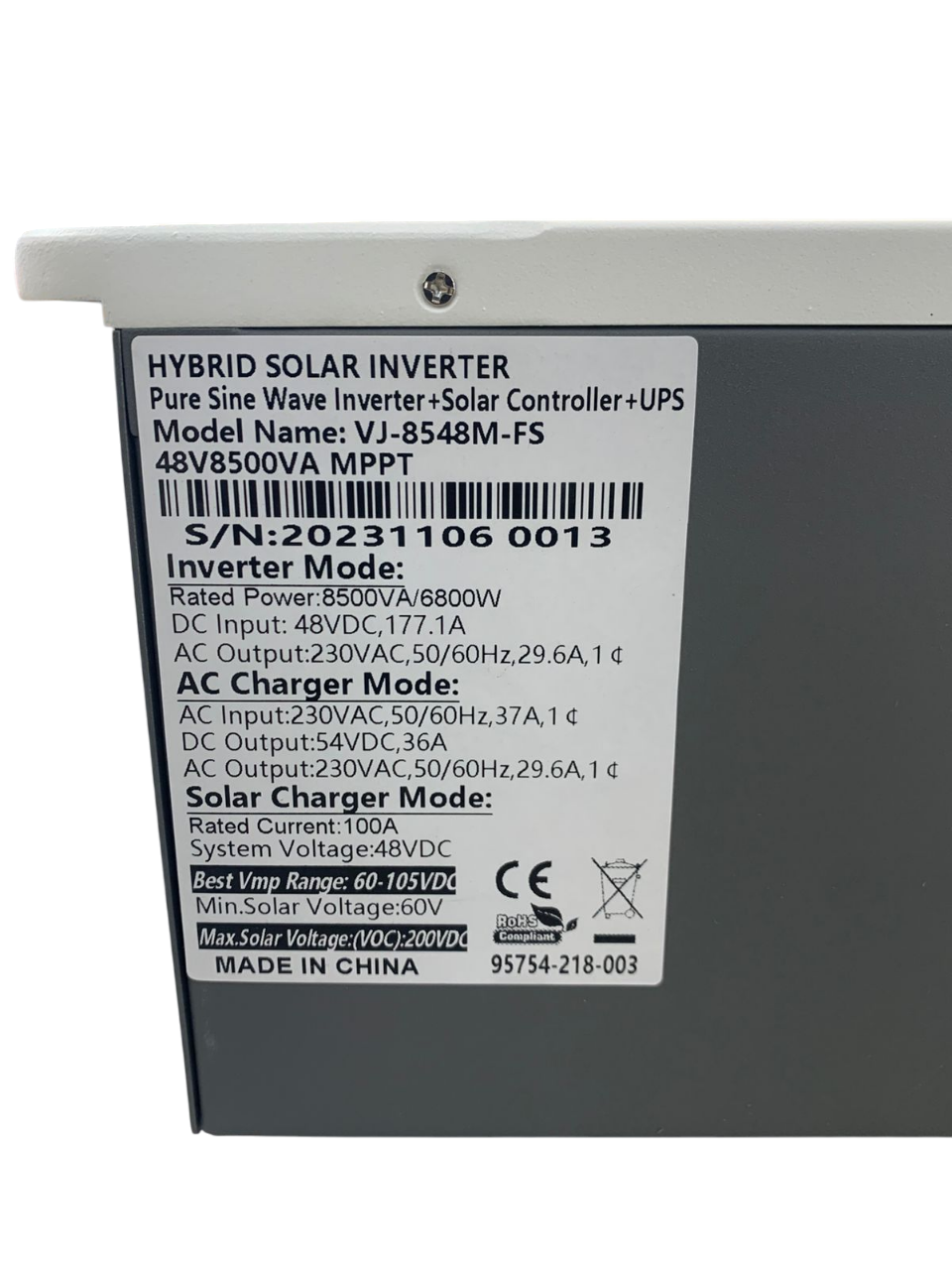

SPECIFICATION

INPUT

• Capacity (VA): 8500W
• Voltage (DC): 48V
• Normal Voltage: 220VAC/110VAC
• Voltage Range: 154-264VAC/77-132VAC
• Frequency: 50-60Hz Auto sensing

OUTPUT

• Watt: 6800W
• Voltage: 220VAC/110VAC
• Frequency: 50/60Hz
• Waveform: Pure sinewave
• Transfer time(DC to AC): <8ms
• Transfer time(AC to DC): <8ms
• Output Voltage Regulation: 10%ms
• Bypass Mode: Yes
• Saver Mode: Yes
• Efficiency: >98%

PROTECTION

• Input Protection: Circuit Breaker
• Output Protection: Circuit Breaker

BATTERY

• Battery Type: AGM-Deep Cycle, GEL . Up to 500Ah
• Charging Current: 36A
• Low Level Disconnect(Selectable): 40V or means the number of batteries in series
• Maximum Solar Charging Current: 100A
• MPPT/PWM Input Voltage Range: 48V;MPPT60-200VDC(or PWM60VDC-150VDC)
• Maximum PV Array Open Circuit Voltage: 48V:MPPT200VDC(or PWM60VDC-150VDC)
• Maximum PV Array Power: 48V:6400W

Package Dimensions :

Net Weight(KG) 35.72KG
Gross Weight(KG) 39.59KG
Product Dimension(MM) 645×450×160
Package Dimension(MM) 74×575×24

WARRANTY

1year warranty

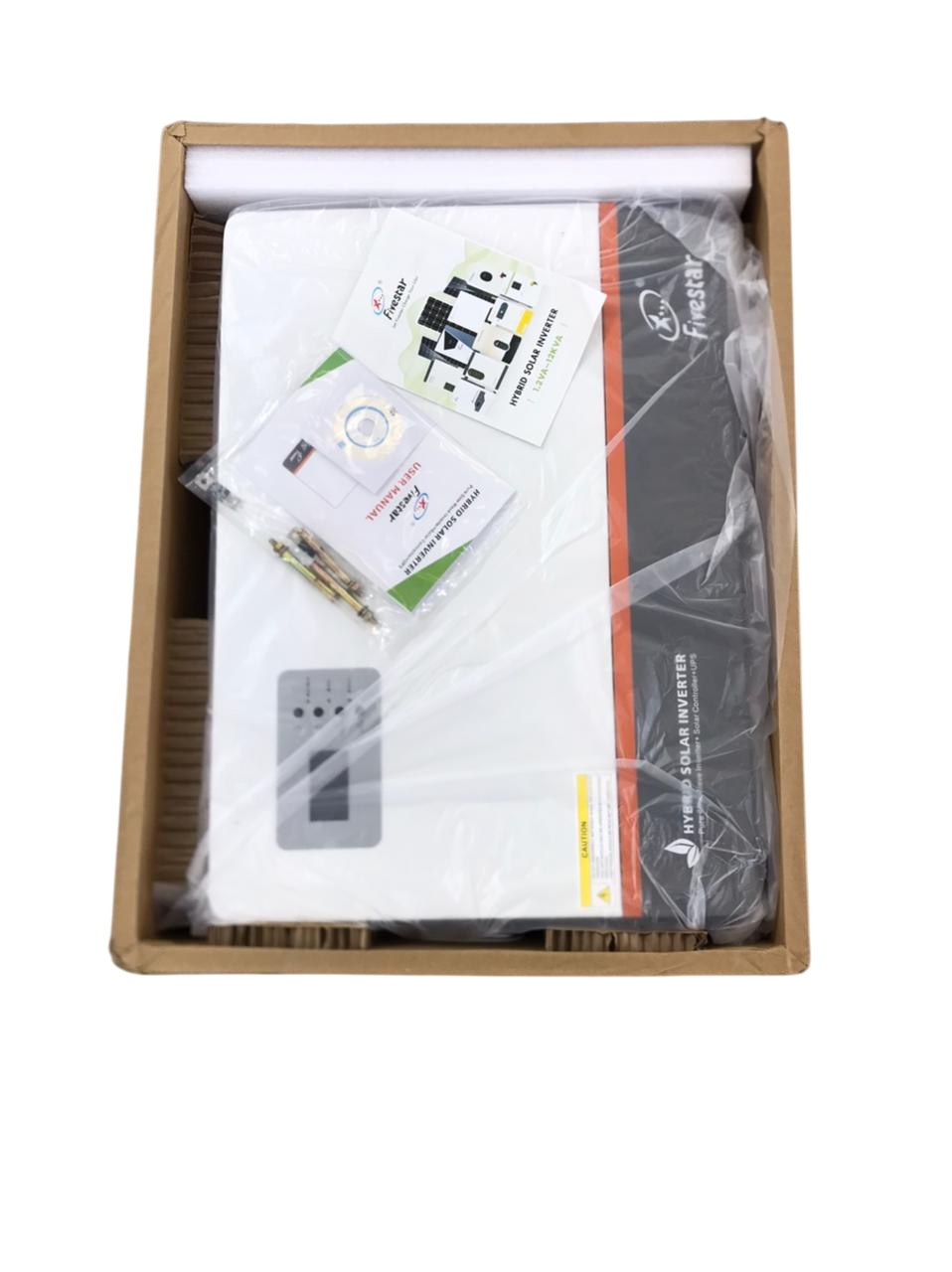

Package  includes :

1 x Fivestar 8.5kva 48v MPPT Hybrid Solar inverter

1 x Manual Book

1 x Mounting Bracket and Screws
