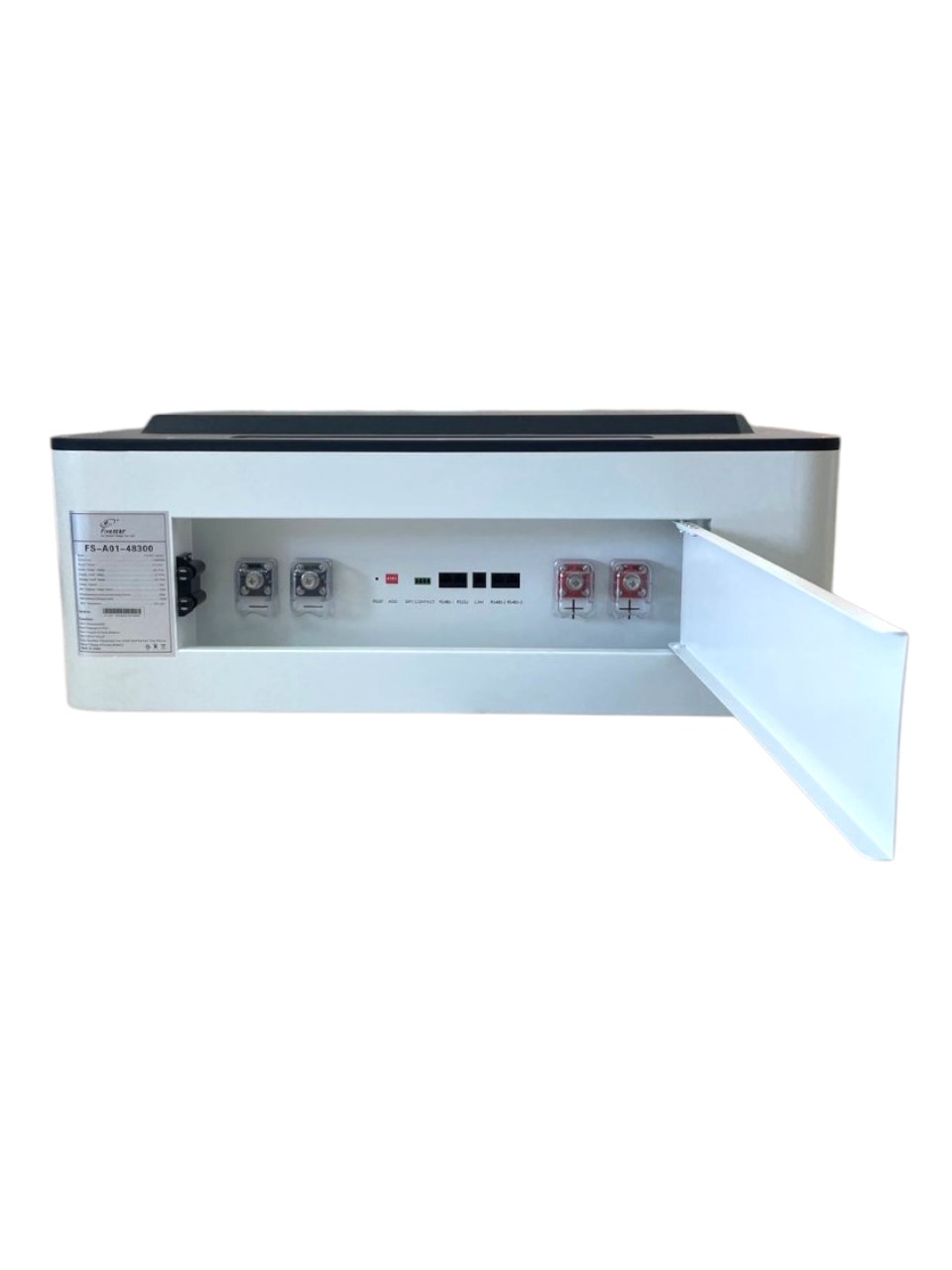

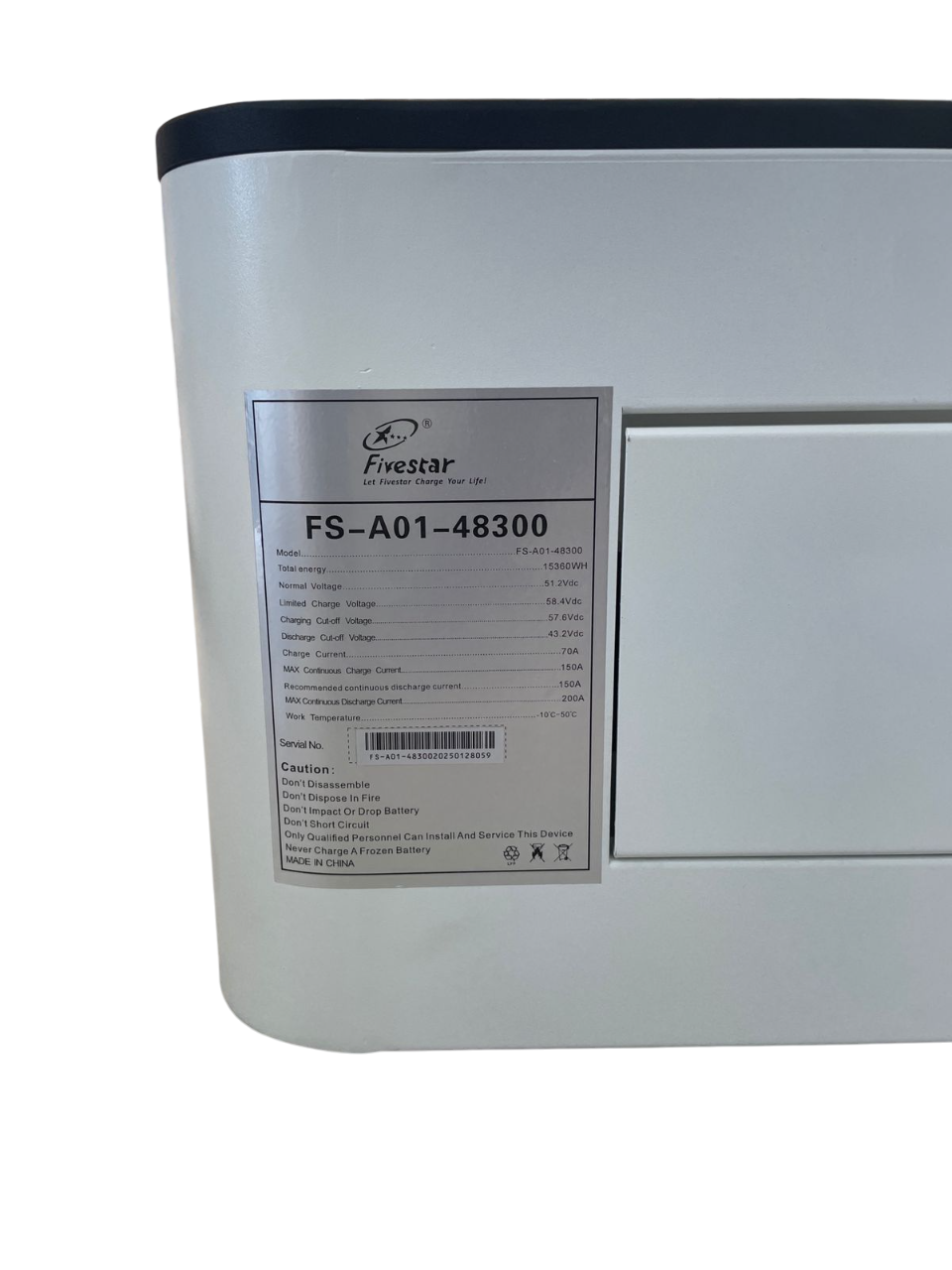

FS-A01-48300 15.36kw 51.2v 300Ah High Quality LiFePO4 Battery

Features

• Iron phosephate-lithium power battery
• Higher energy density, smaller volumn for household
• Support connected in parallel mode for expansion
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system(BMS): The battery packs built-in monitors its operation and prevents the battery from operating outside limitations.
• Expandability: This battery pack can easily expanded by adding expansion battery packs in parallel connection.

Specifications

Model- FS-A01-48300

Usable Capacity- 15360WH

Rated Voltage- 51.2V

Voltage Range- 43.2-58.4

Max Continuous Change Current- 150A

Max Continuous Discharge Current- 200A

Max Output Power- 10240W

Recommended Output Power- 8000W

DOD- >95%

Model Communication- 1-3 in Parallel

Communication- 485/CAN

Ingress Protection- IP21

Cycles Life- >6000

2 year warranty

Package Dimensions:

Product Dimension- 750 x 500 x 280mm

Package Dimension- 820 x 570 x 45mm

NW  133kgs

GW  116.2kgs

Package include:

1 x FS-A01-48300 Lithium Battery

2 x Battery Cable

1 x Communication Cable

1 x Manual Book

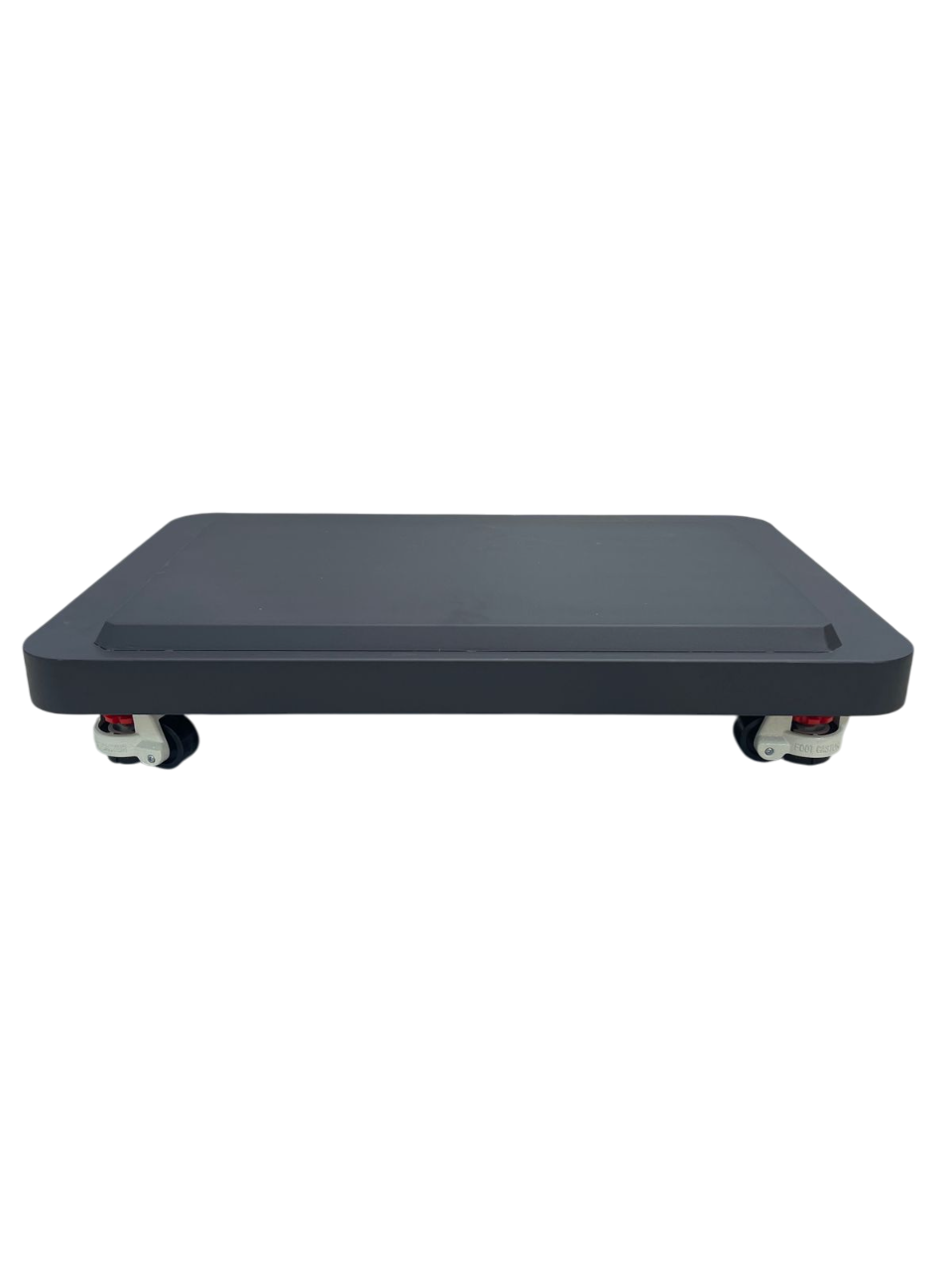

NB.   we sell separate with Battery wheel base ( R2,200)

2 Year Repair Warranty Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void
