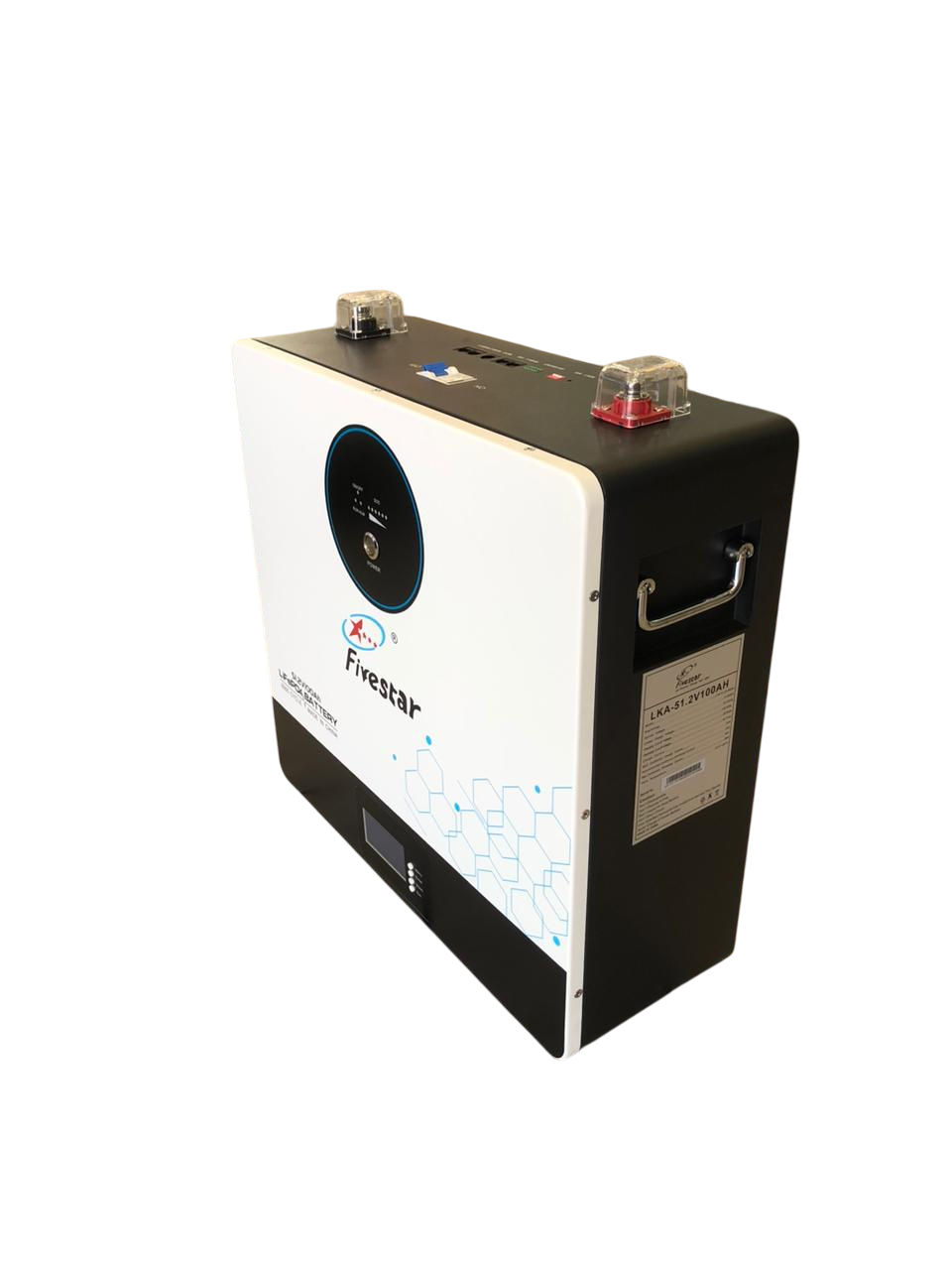

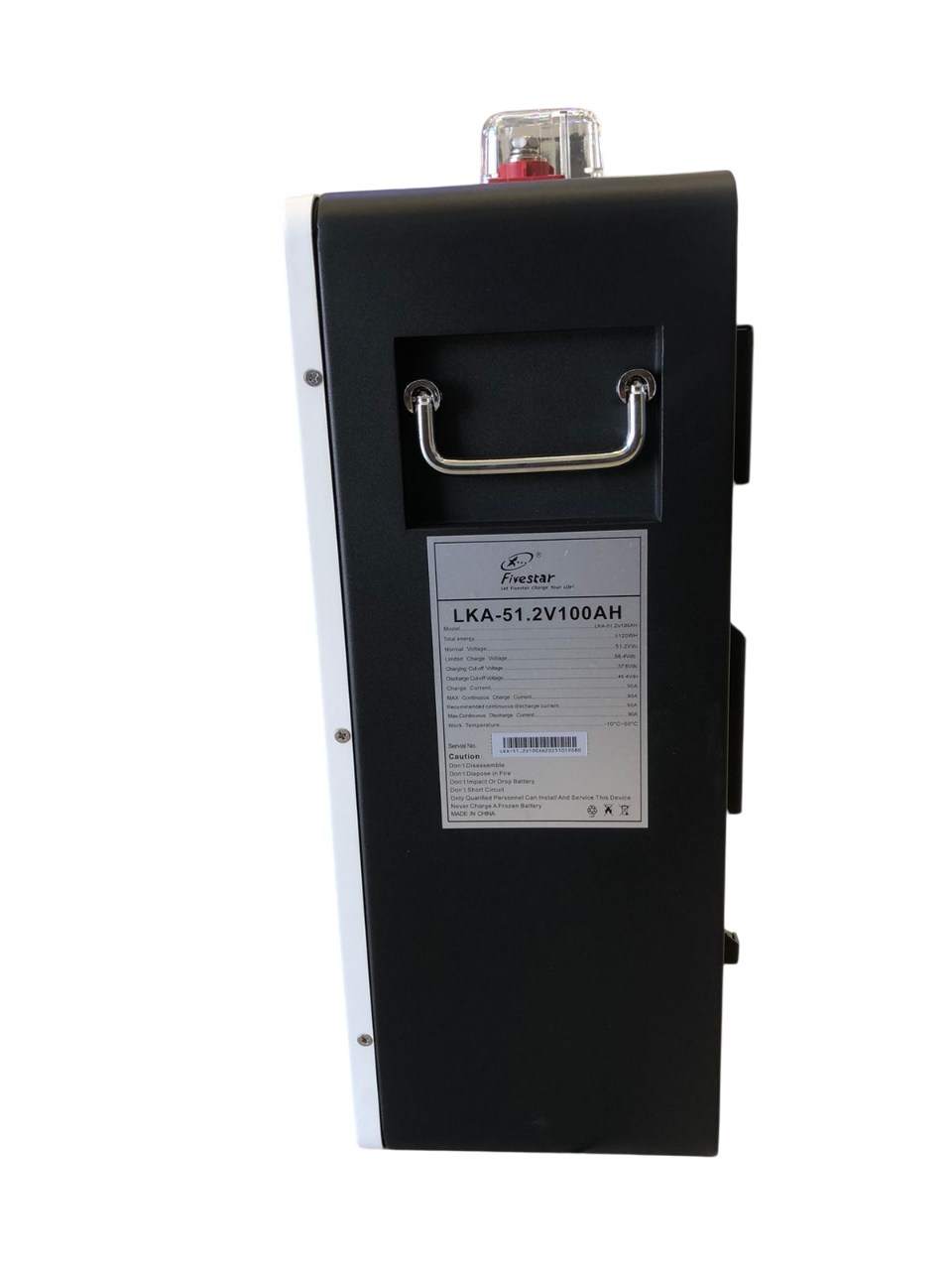

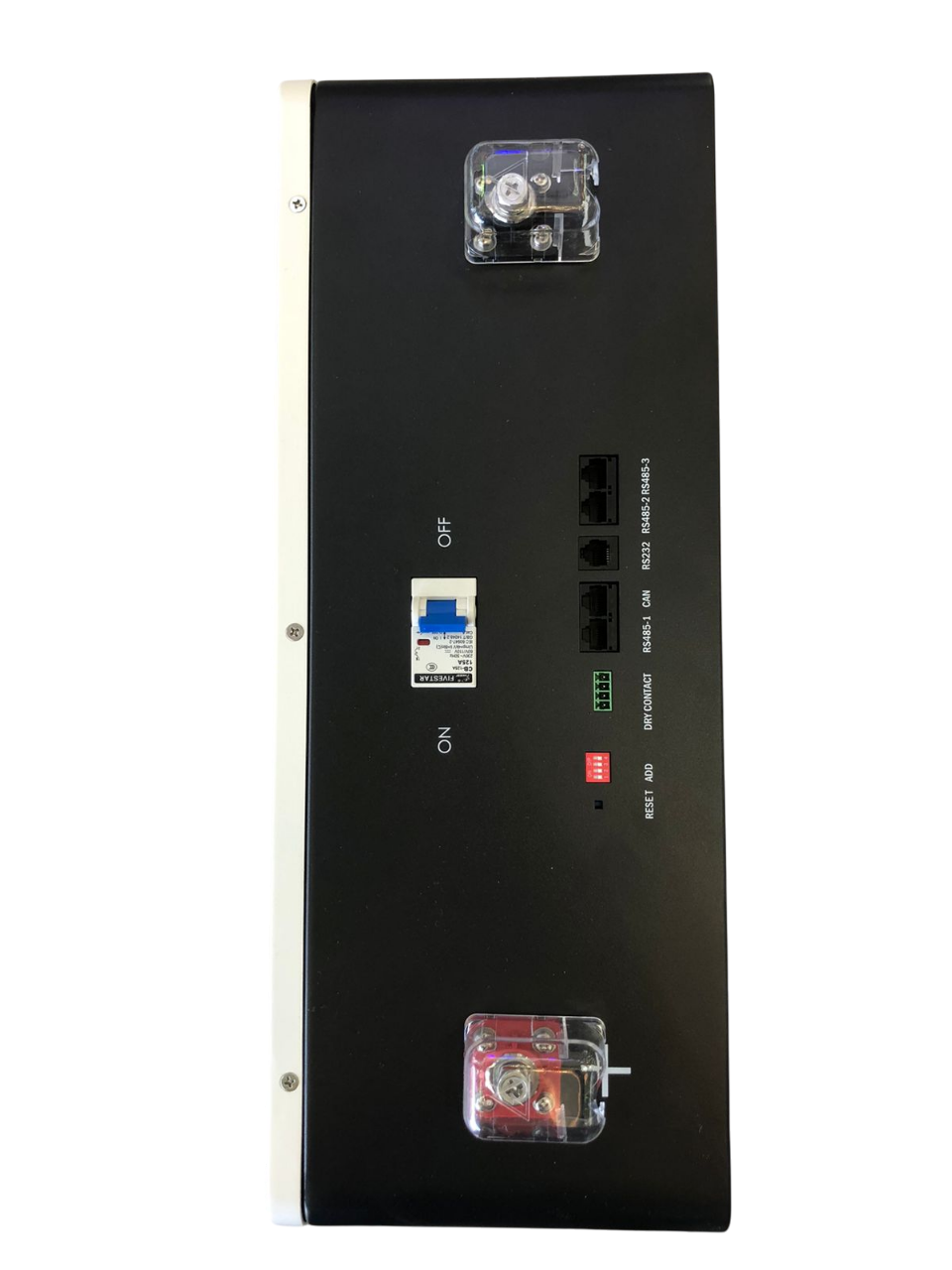

Name: FS-LKA100 5.12Kw 100Ah 51.2v Wall Mount Lithium Battery
SKU: 46110
Availability: InStock

Features

Iron phosphate-lithiam power battery.
Higher energy density,smaller volume for household.
support connected in parallel mode for expansion.
photovoltaic system: This battery pack is desihgned for household photovoltaic systems.
Battery management system[MBS]: The battery packs built-in MBS monitors its operation and prevents the battery from operating outside desine limitations.
Expand ability:This battery pack can be easly expanded by adding expansion battery

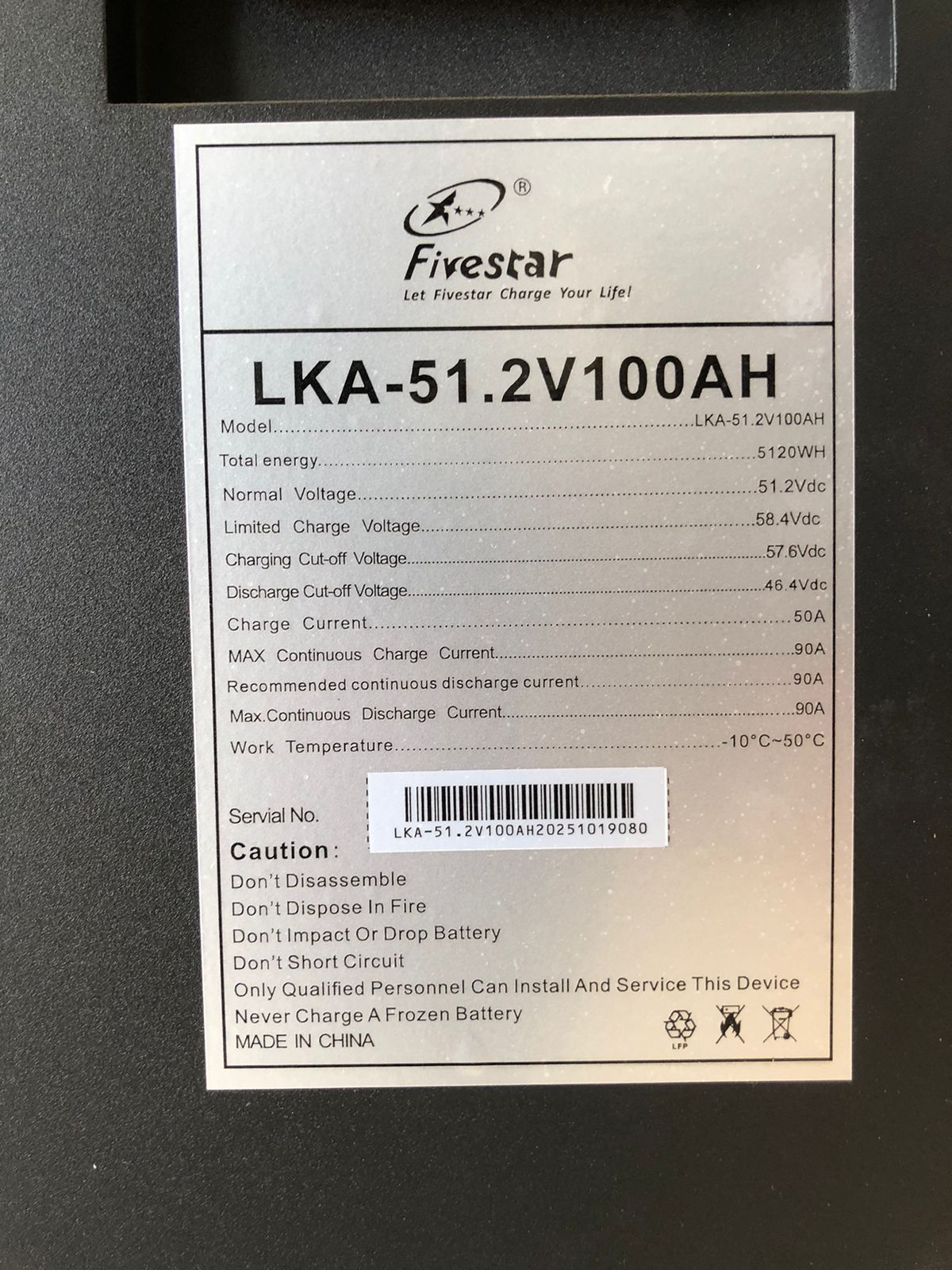

MODEL	LKA-51.2V 100AH
Installation	Wall-Mounted
Total Energy	5120Wh
Norminal Capacity	100Ah
Norminal Voltage	51.2V
Voltage Window	46.4-58.4V
Fast Charge Voltage	58.6V
Folat Charge Voltage	57.6V
Low DC Cut-off Voltage	46.4V
Max. Continue Charge Current	80A
Max. Continue Discharge Current	90A
Suggested Charge Current	80A
Display	LCD Display
Scalable	Max. 15pcs in parallel
Cycles	6000 times
PROTECTION
Protection	Over charge protection/ over discharge protection/short circuit protection/ over temperature protection
AMBIENT
Working Temperature	Discharge: 10℃to 50℃charge: 0℃to 60℃
Humidity	0-95% (no condensation)
DIMMENSION
L x W xH (product size)mm	485 x 795 x 185
L x W xH (packaget size)mm	888 x 557 x 407
