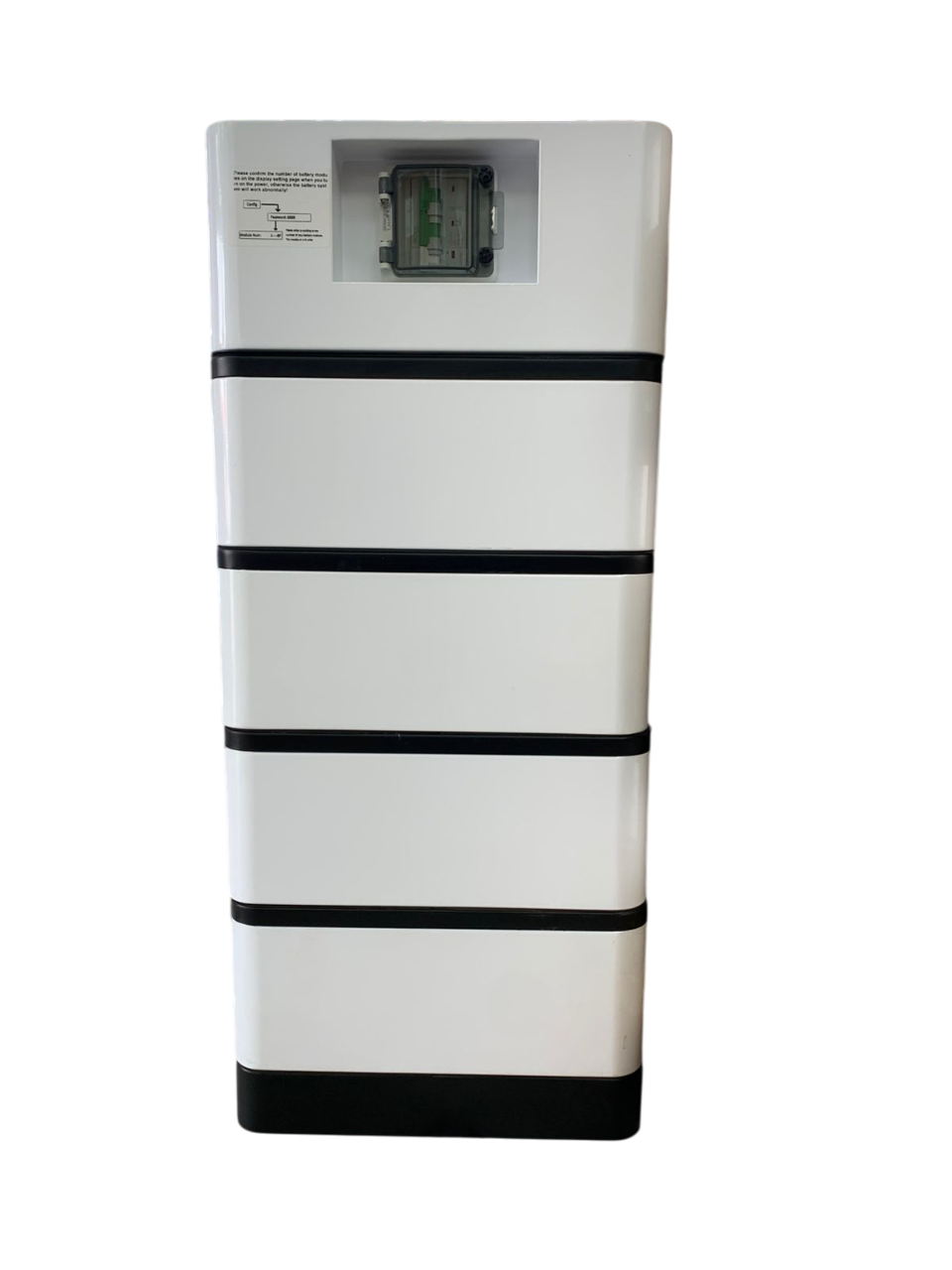

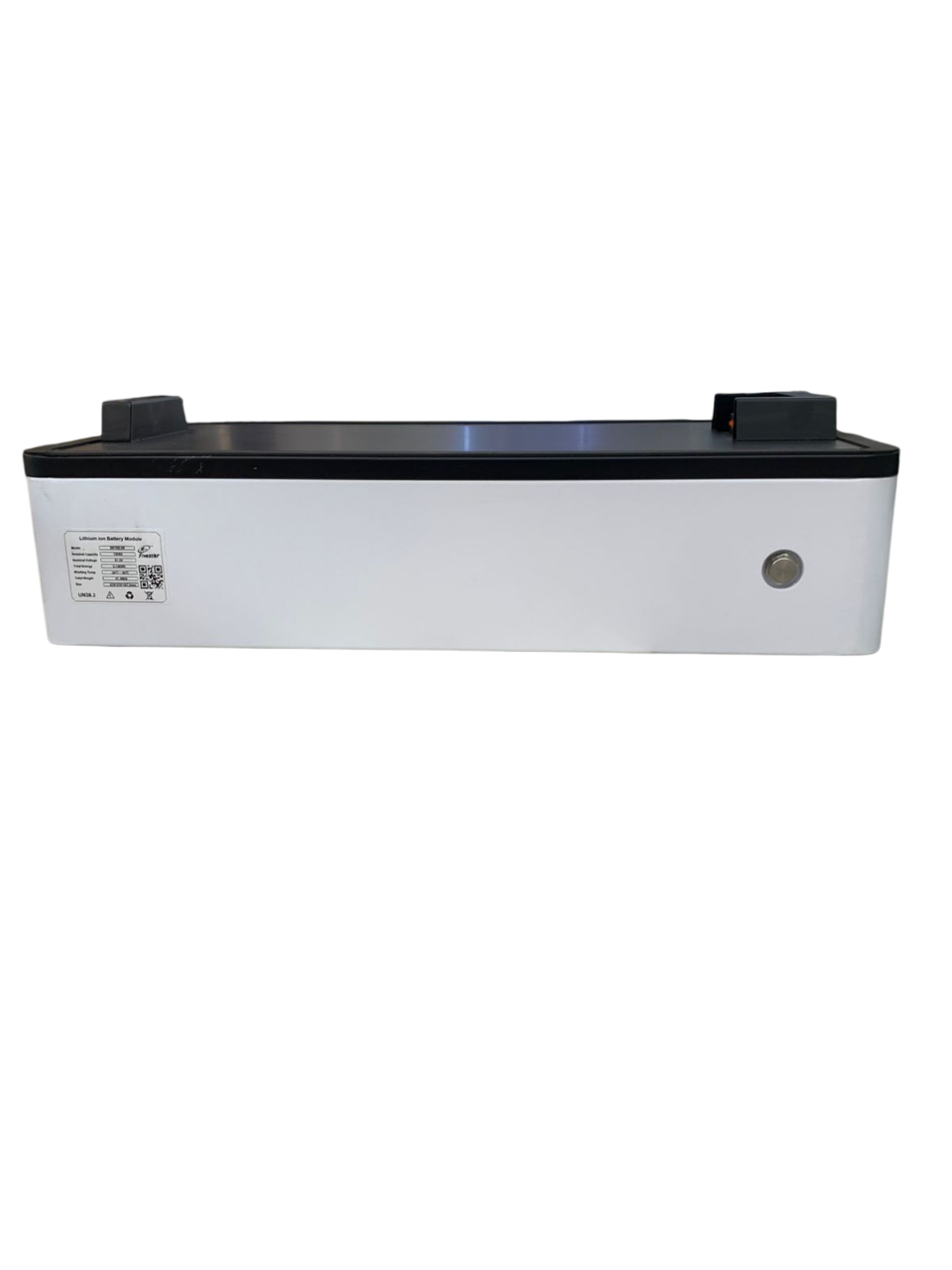

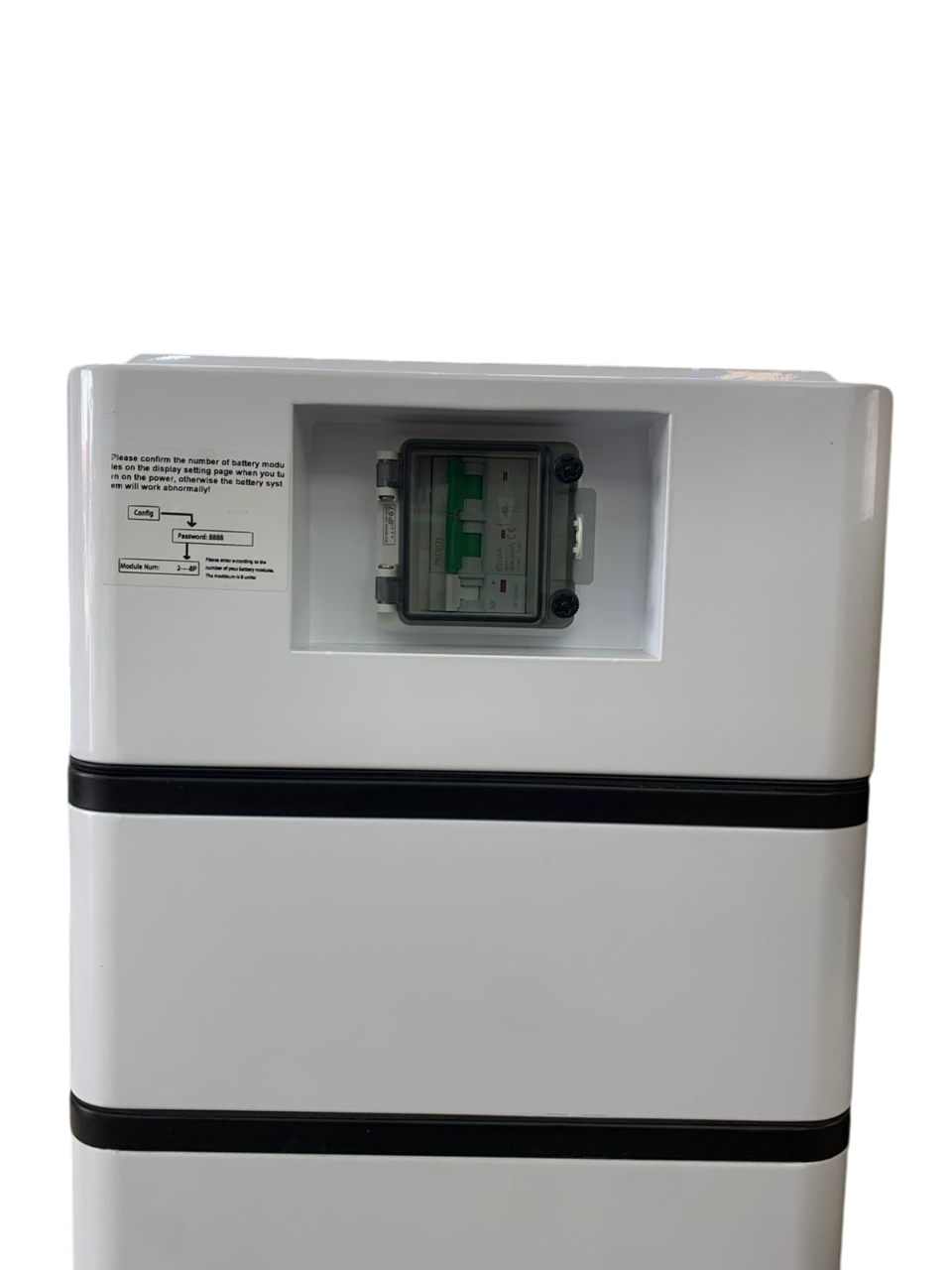

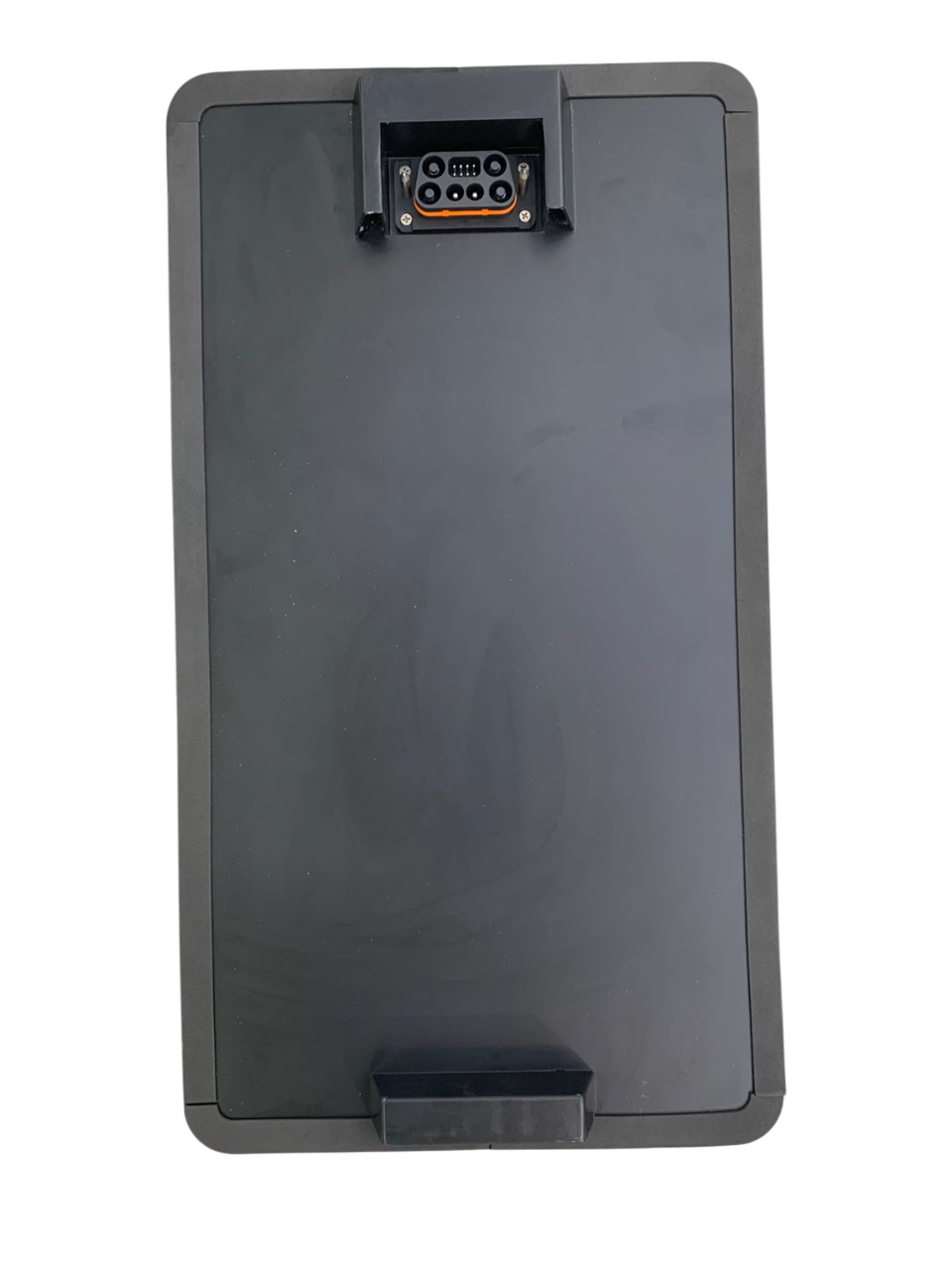

Name: FS-SK16s-48100 5.12KW 51.2V 100AH High Voltage Lithium Ion Battery LiFePO4 Solar Energy Storage Battery
SKU: 45152
Availability: InStock

Project	Parameters
Usable Power	51.2kwh Battery Module (1-8)
Cell Type	LFP(LiFePO4)
Rated Voltage	51.2kwh Battery Module (1-8)
Operating Voltage Range	(40v Battery Module)-(58.4v* Battery Module)
Rated Charge/Discharge Power	100A(51.2v Battery Module)（KW）
Operating Temperature Range	Charge: 0-50℃; Discharging: -20 – 55℃;
Rated Humidity	0-95%
Protection Class	IP55
Recurring Life Cycle	5000≥80%DOD
Communication Type	CAN, RS485, TCP/IP
Installation	Ground Installation

List of matched inverter brand

The following brand and models are to verify the success of the pairing, there many be differences between different models of the same brand, such as the choice of the inverter brand and model not described in the following chart.

Brand	Protocol type	Version	Inverter	PCS	Model
Sermatesc	CAN	V1.18	✔
Sofar	CAN	V1.0.001	✔		HYD5-20KTL-3PH HYD 10KTL-3PH HYD 15KTI-3PH
ATESS	CAN	V2.0	✔
Goodwe	CAN	V1.2	✔		ET BT BH
Growatt	CAN	V1.03	✔		SPH(5000-10000)TI3BH
Megarevo	CAN	V1.7		✔	R8KH3 R10KH3 R12KH3
Megarevo	CAN	V2.0	✔
SunGrow	CAN	V1.18	✔
Voltronic power	RS485		✔		InfiniSolarWP-30KW
Pylontech	CAN	V1.21	✔
Solis	CAN	V1.0	✔
DEYE	CAN		✔		SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN50K-SG01HP3-EU-BM4
INVIT	CAN	V1.04	✔

What’s in the box:

1 x 5kw 48v 100ah lithium battery

NB. Control of battery system operator 5kw 409.6V we sell separate(The battery base stand and battery controller high voltage comes together)

2 Year Repair Warranty Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void
