8.5KVA MPPT Fivestar Load Shedding Combo Backup Power Kit With 10Kw Lithium Battery and 6x Solar 550W Solar Panels Mono

8.5KVA MPPT Fivestar Load Shedding Combo Backup Power Kit With 10Kw Lithium Battery and 6x Solar 550W Solar Panels Mono - Image 2

8.5KVA MPPT Fivestar Load Shedding Combo Backup Power Kit With 10Kw Lithium Battery and 6x Solar 550W Solar Panels Mono - Image 3

8.5KVA MPPT Fivestar Load Shedding Combo Backup Power Kit With 10Kw Lithium Battery and 6x Solar 550W Solar Panels Mono

R34680,00

NB.

The stock quantities displayed on the website are for the one we have by our store. What’sApp us to confirm the stock if you want more.
Here is the main branch of Fivestar & Sunmagic.
Wholesale and Retail is available.
Our lithium batteries has 2years warranty but if the battery has fault while is out of warranty we do fix for free just pay for the parts.

8 in stock

Categories: COMBO, Complete Solar System

Description
Reviews (0)

8.5KVA MPPT Fivestar Load Shedding FS-10 KWh Combo Backup Power Kit With 6x Solar 550W Solar Panels Mono

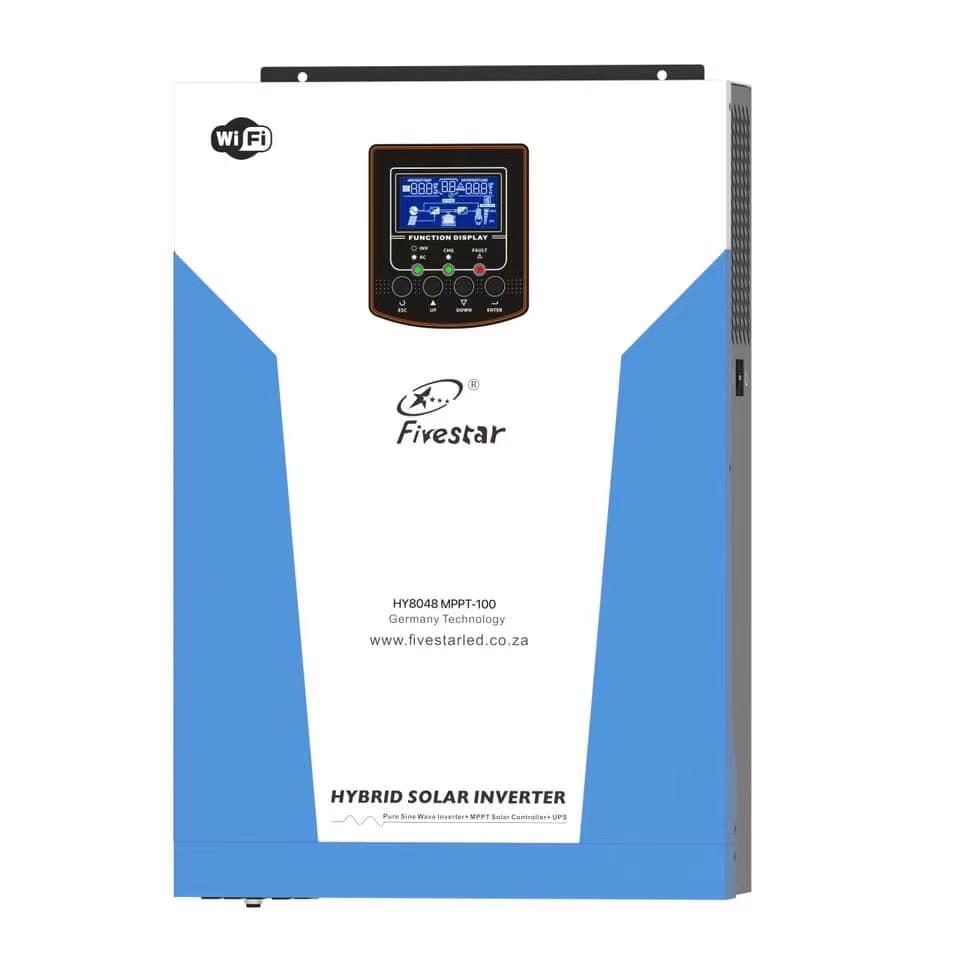

FIVESTAR HYBRID INVERTER

Specifications
-Model: FS-1008
-Item Code:WO8548 WiFi
-Color: Blue and White Operating Temperature Range: 0-55°C
-Inverter Mode:

Rated Power: 8500VA/6500W
DC Input: 48VDC.127A
Grid Output: 230VAC, 50/60Hz.23.9A

AC Charger Mode

Grid Input: 230VAC 50/60Hz,38.5A
DC Output: 54VDC,
Max 80A, Default 30A
AC Output: 230VAC, 50/60Hz, 23.9A

Solar Charger Mode

Rated Power: 6000W
Max charger:120A
Nominal operating voltage:240VDC
Max. Solar Voltage(VOC):500VDC
MPPT Voltage range: 120-450VDC

BATTERY

SPECIFICATIONS BATTERY:

Model: FS-U01-48200

Usable: Capacity: 1024WH

Rated Voltage: 51.2V

Voltage Range: 43.2-58.4

Max Continuous Discharging Current: 120A

Max Continuous Charge Current: 100A

DOD: >95%

Module Connection: Automatic Coding, up to 15 Groups of Parallel Machiner

Cycle: ≽6000

Communication: 485/CAN

2YEAR WARRANTY

Package Dimension:

Product – 635mm x 470mm x 180mm

Box – 735mm x 540mm x 250mm

NW 57.2kg

GW 67.4g

Package include:

1 x FS-U01-48200 High Quality Lithium-ion Battery

1 x Communication Cable

2 x battery Cable Red + Black

4 x Mounting Screw

1 x Wall Mounting Bracket

1 x Manual Book

COMBO INCLUD

1 x 8.5kva- 6000W 48v MPPT Hybrid Inverter (1year Warranty)

1 x 10kw 51.2V Lithium-ion Battery (2years Warranty)

6 x 550W Mono Solar Panels Fivestar (25years Warranty)

Battery Cables And Brackets Included

Courier for panels are at your own risk

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
