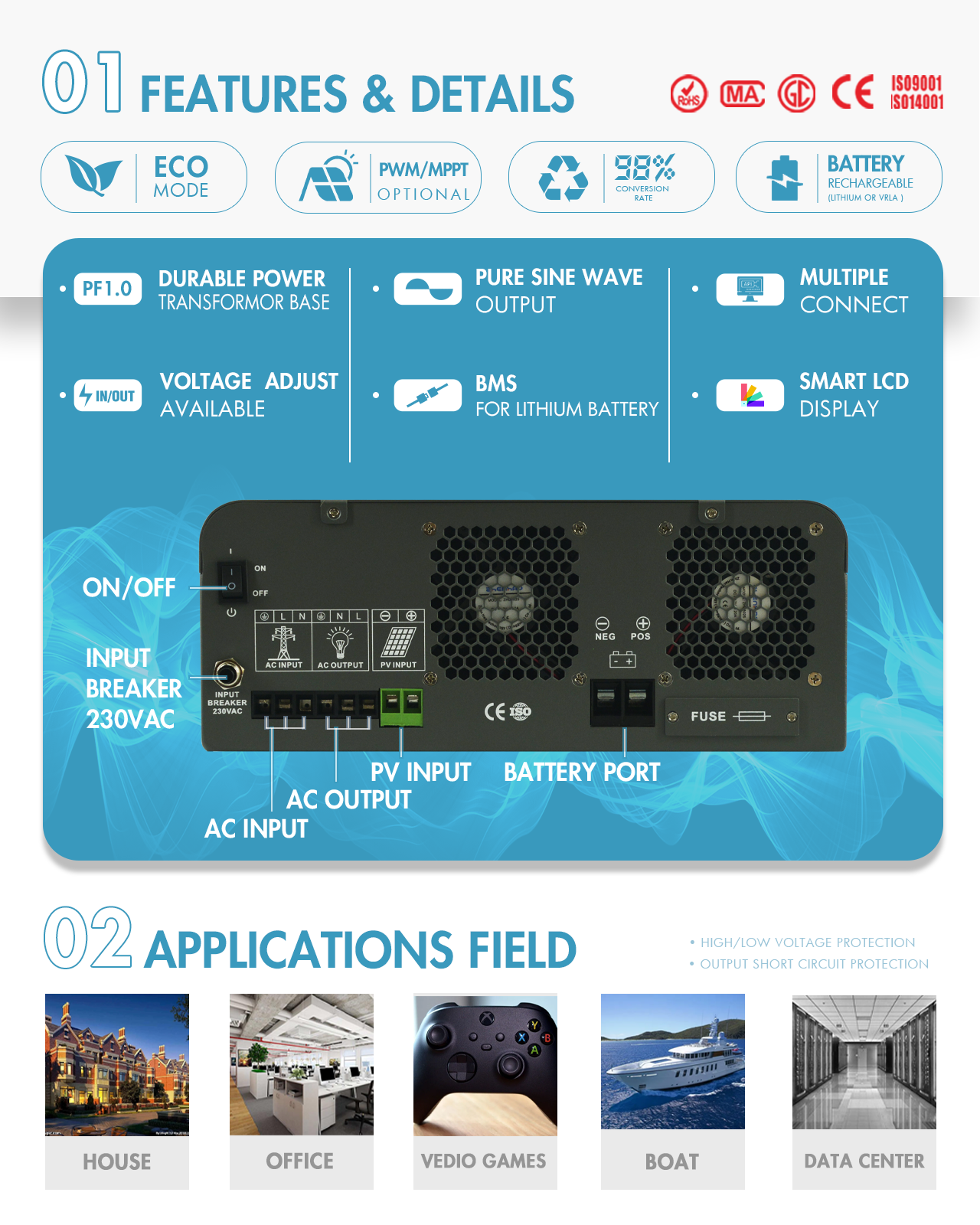

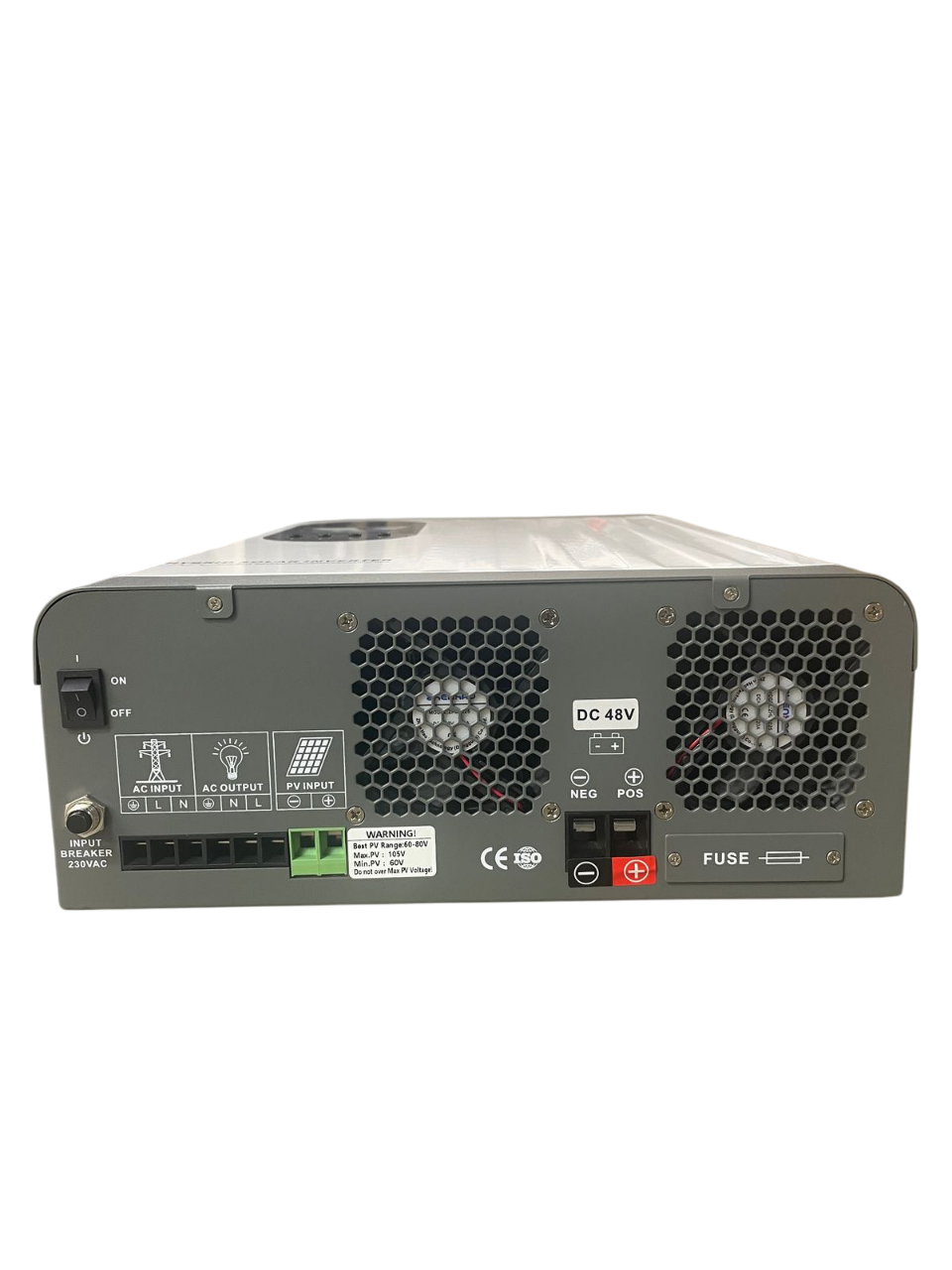

Fivestar-VZ-5548PS 5.5KVA 48V PWM Hybrid Solar Inverter Pure Sine Wave + Solar Controller + UPS

VZ  5.5KVA Hybrid Inverter

-The Fivestar  5,5KVA Pure Sine Hybrid Solar Inverter is a high-performance inverter that efficiently converts solar energy into usable power for your home or office.
-With its pure sine wave output, it ensures smooth and reliable operation of your sensitive electronic devices.
– This hybrid solar inverter is equipped with a built-in PWM charge controller, allowing you to connect solar panels directly to the inverter for maximum efficiency.
– It also features a battery management system that optimizes battery performance and prolongs battery life.
-The Fivestar  5,5KVA Pure Sine Hybrid Solar Inverter is designed for easy installation and operation, making it an ideal choice for those looking to harness the power of solar energy.

SPECIFICATION
Model: 5548

INPUT

• Capacity(AV) – 5500VA
• Voltage(DC) – 48V
• Normal Voltage – 220VAC/110VAC
• Voltage Range – 154-265VAC/77-135VAC
• Frequency – 50-60Hz Auto sensing

OUTPUT

• Watt – 5000W
• Voltage – 220VAC/110VAC(±10%ups mode)
• Frequency – 50/60Hz
• Waveform – Pure sinewave
• Transfer Time(AC to DC) – <8ms
• Transfer Time(DC to AC) – <8ms
• Output Voltage Regulation – 10%rms
• Bypass Mode – Yes
• Saver Mode – Yes
• Efficiency – >98%

PROTECTION

• Input Protection – Circuit Breaker
• Output Protection – Circuit Breaker

BATTERY

• Battery Type – AGM-Deep Cycle, GEL,LIFEPO4 (Up to 500Ah)
• Maximum Solar Charging Current – 80A
• PWM PV Array Input Voltage Range – 60-150VDC
• Maximum PV Array Open Circuit Voltage – 105VDC

Package Dimensions:

Product Dimension: 43 x31 x 12cm

Box Dimension: 53.5 x 38 x 19.5cm

N.W: 19.95KG

G.W: 21.53KG

Package include :

1 x 5.5KVA 48V PWM Hybrid inverter FS

1 x Manual Book
