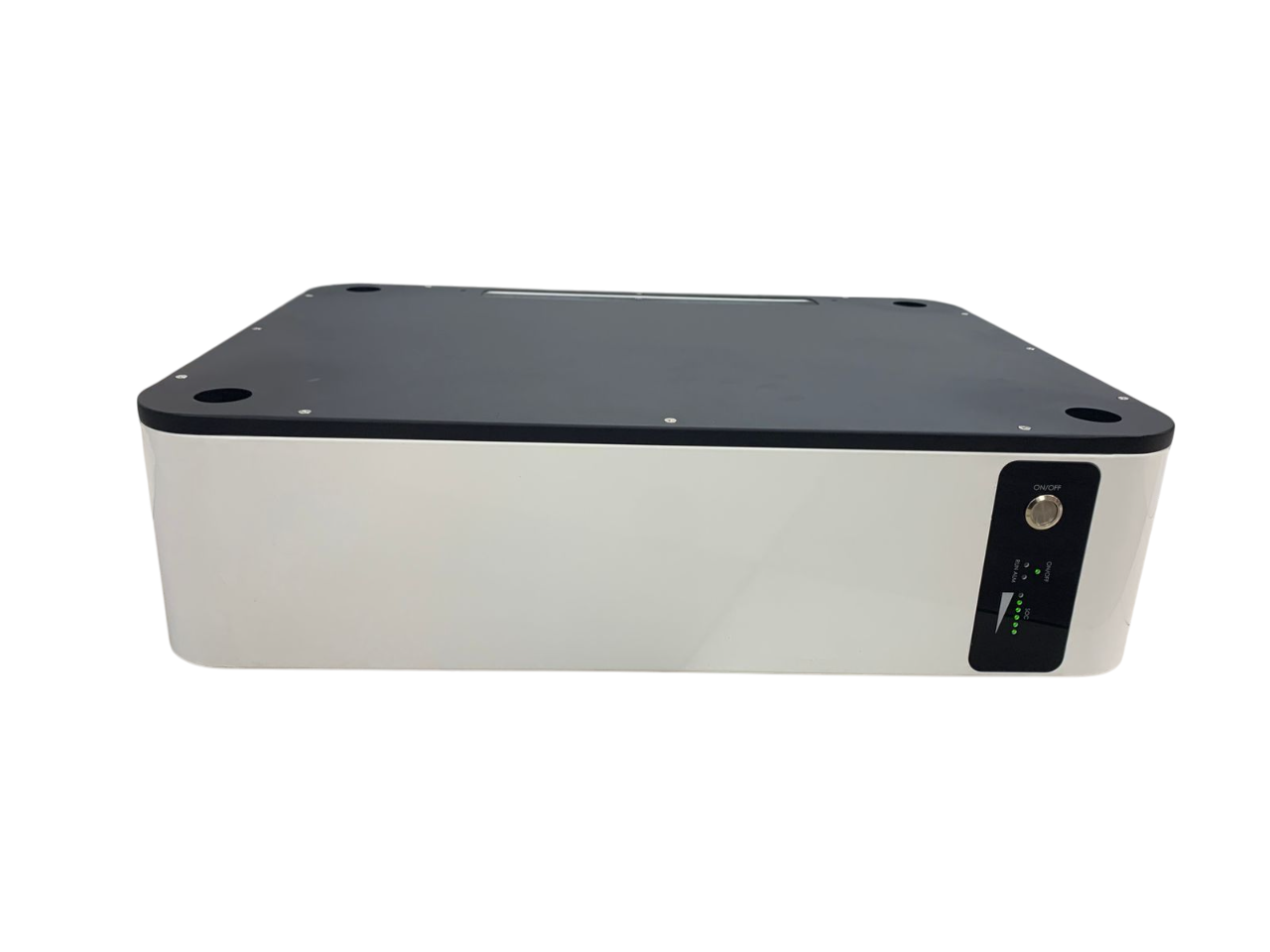

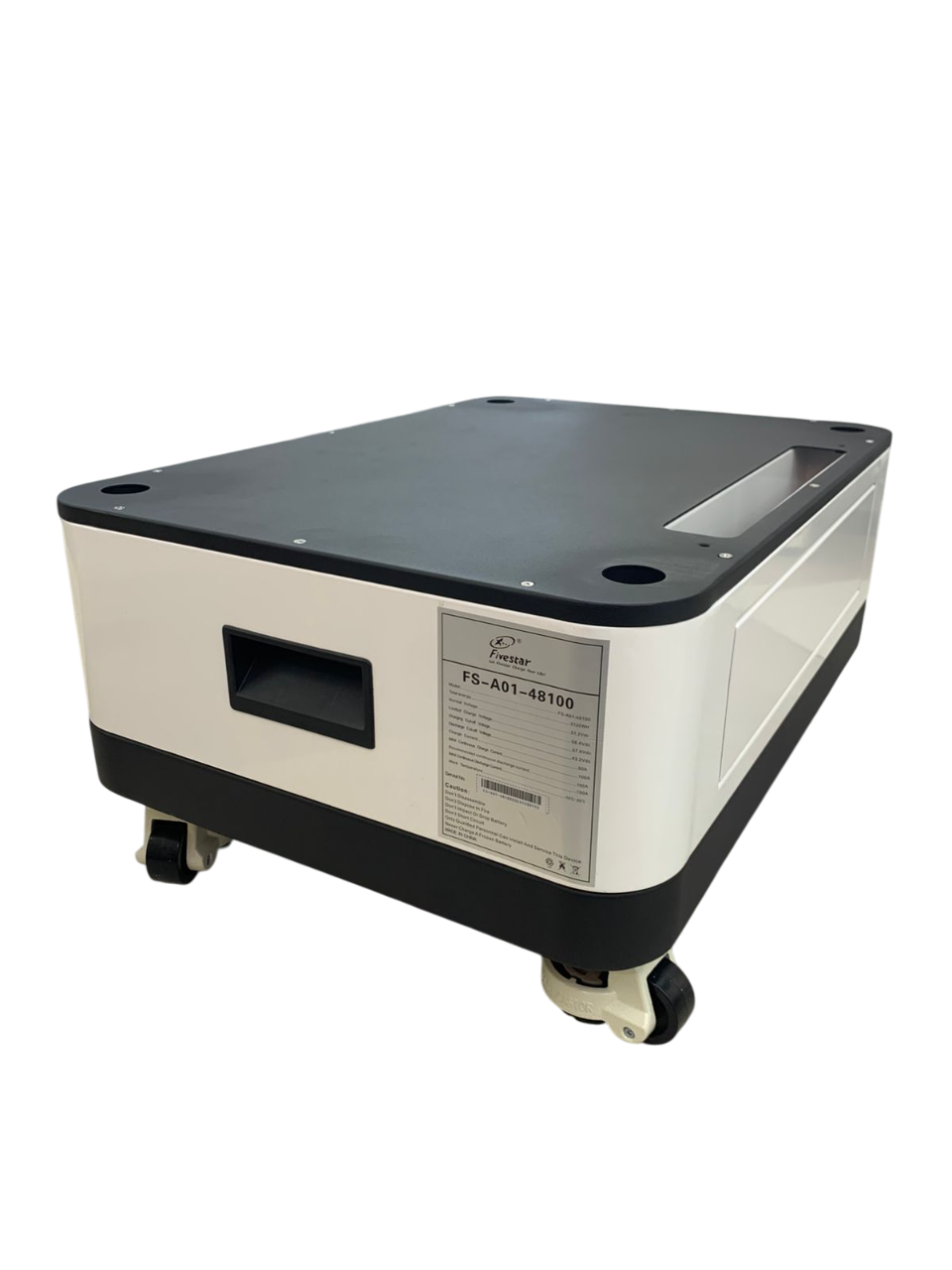

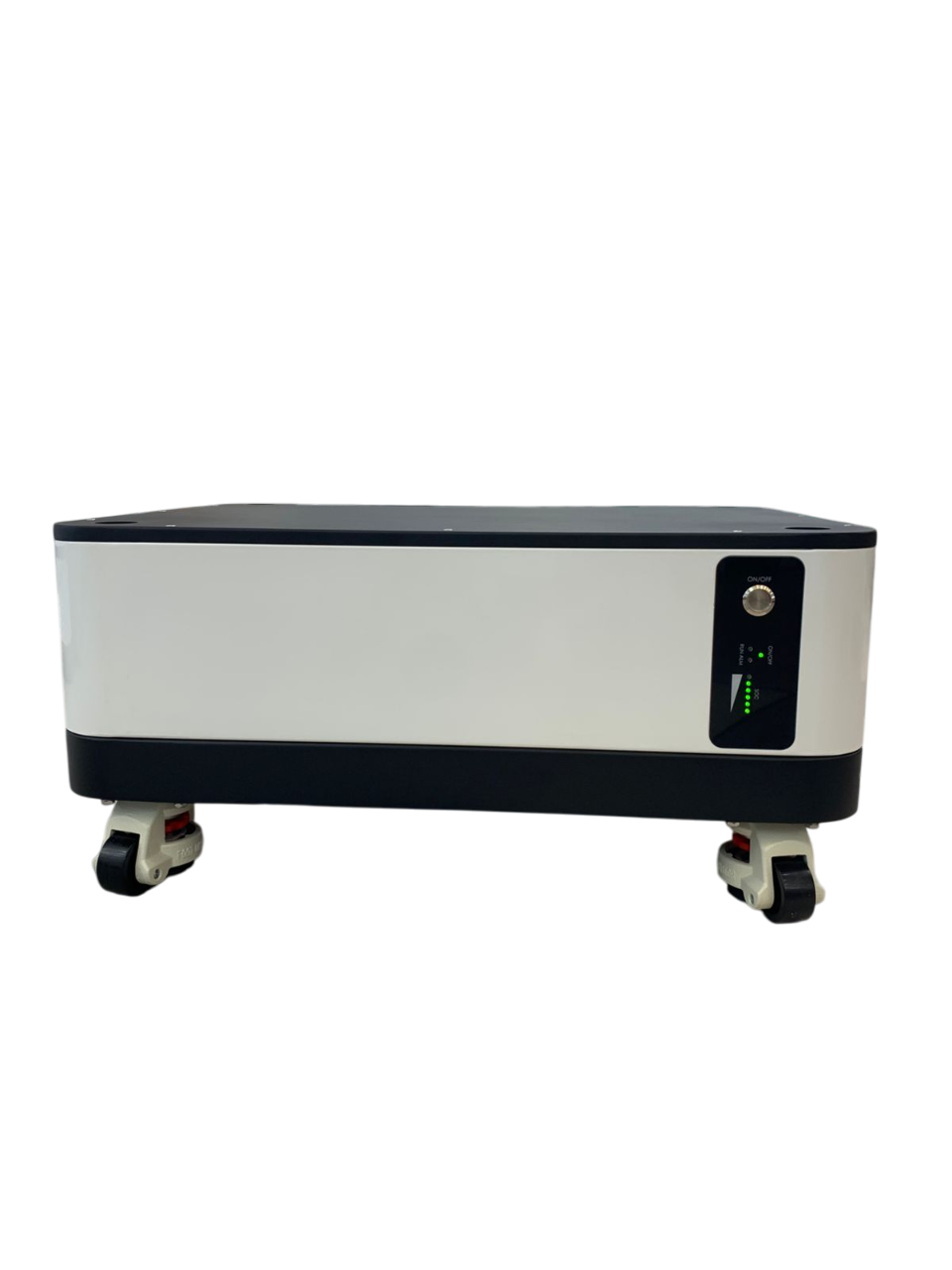

FS-A01-48100 51.2V 5.12K 100Ah High Quality LiFePO4 Battery

Features

• Iron phosephate-lithium power battery
• Higher energy density, smaller volumn for household

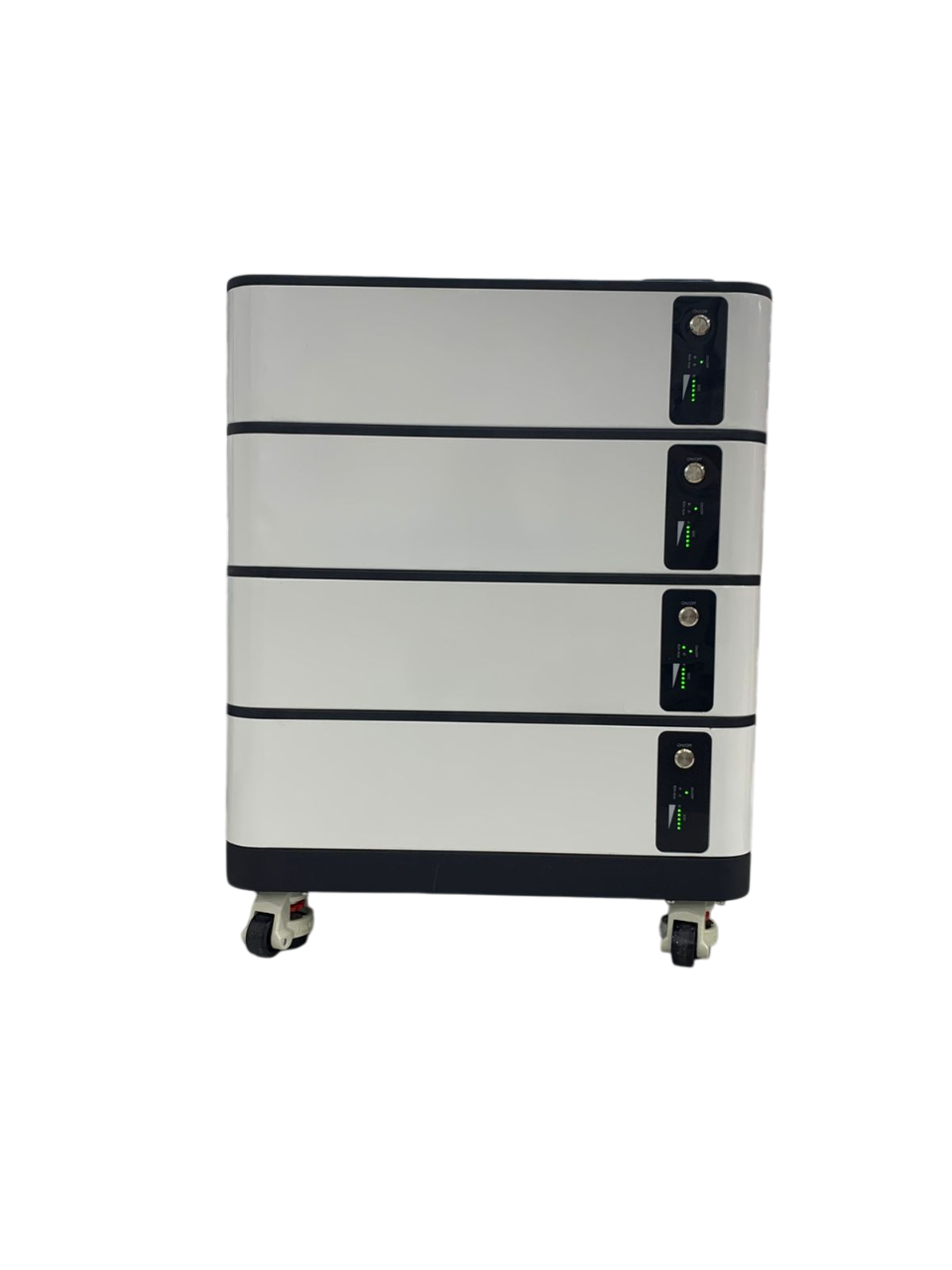

• Support connected in parallel mode for expansion
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system(BMS): The battery packs built-in monitors its operation and prevents the battery from operating outside limitations.

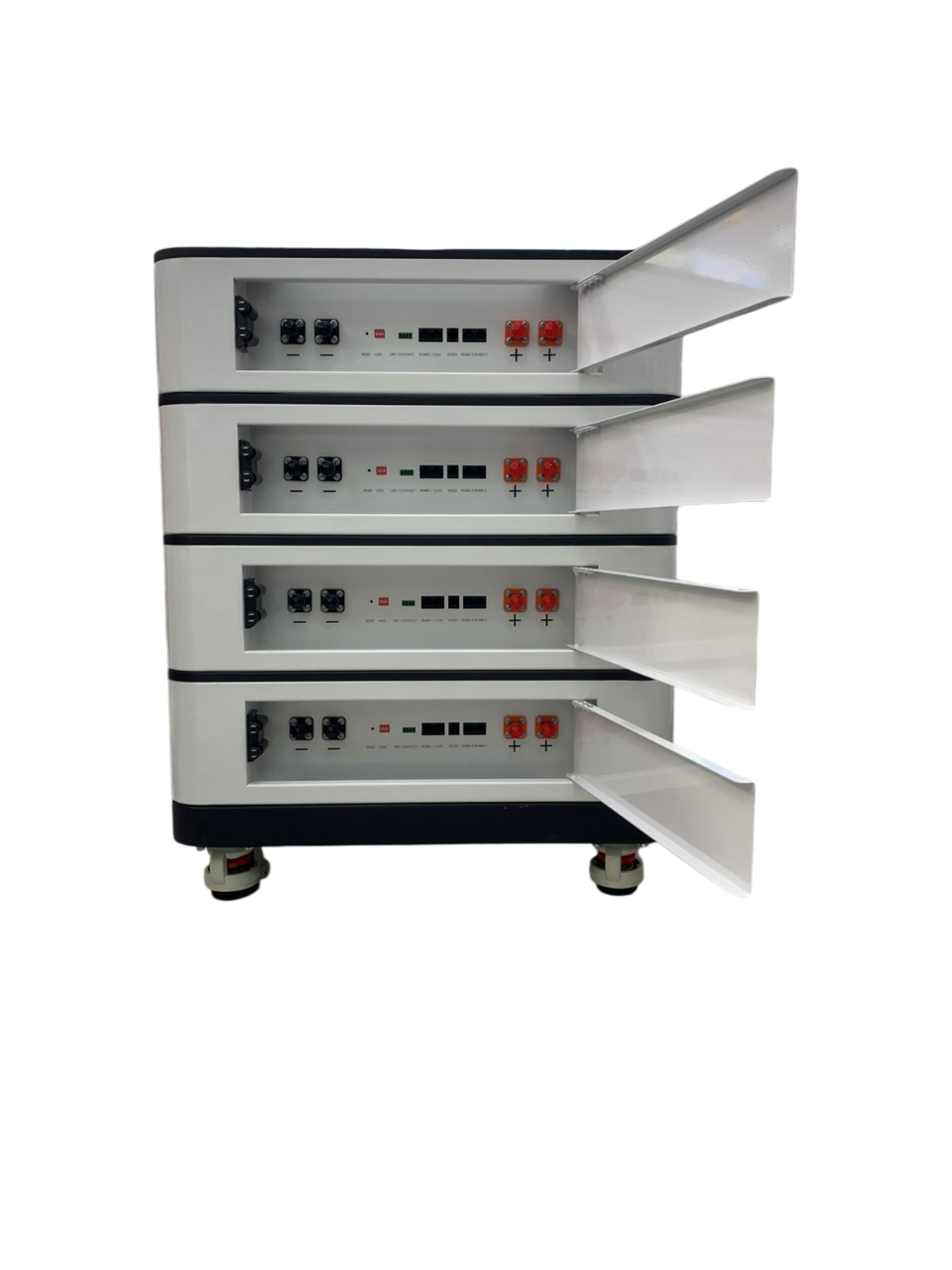

• Expandability: This battery pack can easily expanded by adding expansion battery packs in parallel connection.

Specifications

Model- FS-A01-48100

Usable Capacity- 5120WH

Rated Voltage- 51.2V

Voltage Range- 43.2-58.4

Max Continuous Change Current- 50A

Max Continuous Discharge Current- 100A

Max Output Power- 5120W

Recommended Output Power- 4500W

DOD- >95%

Model Communication- 1-4 in Parallel

Communication- 485/CAN

Ingress Protection- IP21

Cycles Life- >6000

2 year warranty

Package Dimensions:

Product Dimension- 620 x 450 x 170mm

Package Dimension- 690 x 520 x 205mm

NW  48.1kgs

GW  50kgs

Package include:

1 x FS-A01-48100 Lithium Battery

2 x Battery Cable

1 x Communication Cable

1 x Manual Book
