Gf-8KVA 6200w MPPT Fivestar Load Shedding Combo Backup Power Kit With FS-10 KWh Lithium Battery and 8x Solar 650W Solar Panels Mono

Gf-8KVA 6200w MPPT Fivestar Load Shedding Combo Backup Power Kit With FS-10KWh and 8x Solar 650W Solar Panels Mono

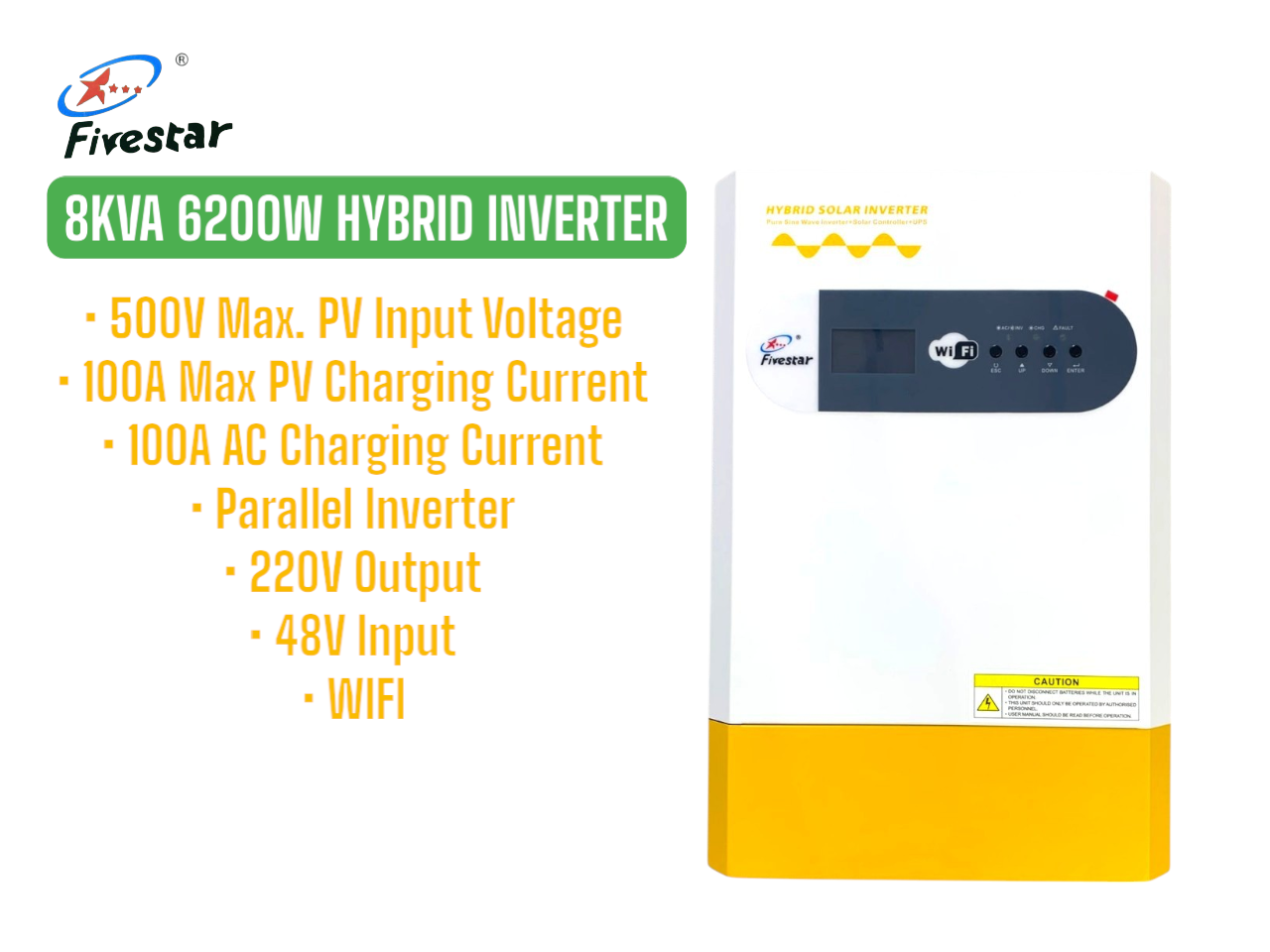

FIVESTAR HYBRID INVERTER

GF 8KVA 6200W Hybrid Inverter

Specifications

Solar Charge Mode
Rated Power: 7500w
Rated Charger: 100A
Min. Solar Voltage: 60VDC
Max. Solar Voltage :(VOC) : 500VDC

Best Vmp Range: 300-400VDC

Inverter Mode
Rated Power: 8000VA/6200W
DC Input: 48VDC, 1143.5A
AC Output: 230VAC ,50/60Hz, 27A ,1c

AC Charger Mode
AC Input: 230AVC, 50/60Hz , 40A, 1c
DC Output; 54VDC ,100A
AC Output : 230VAC ,50/60Hz, 27A ,1c

Package Dimensions

Size: 57,0cm x 38,4cm x 20,5cm

N.W: 10.9kg

G.W: 12.7kg

Package include:

1 x GF 8KVA 6000W Hybrid Inverter

1 x WiFi Dongle

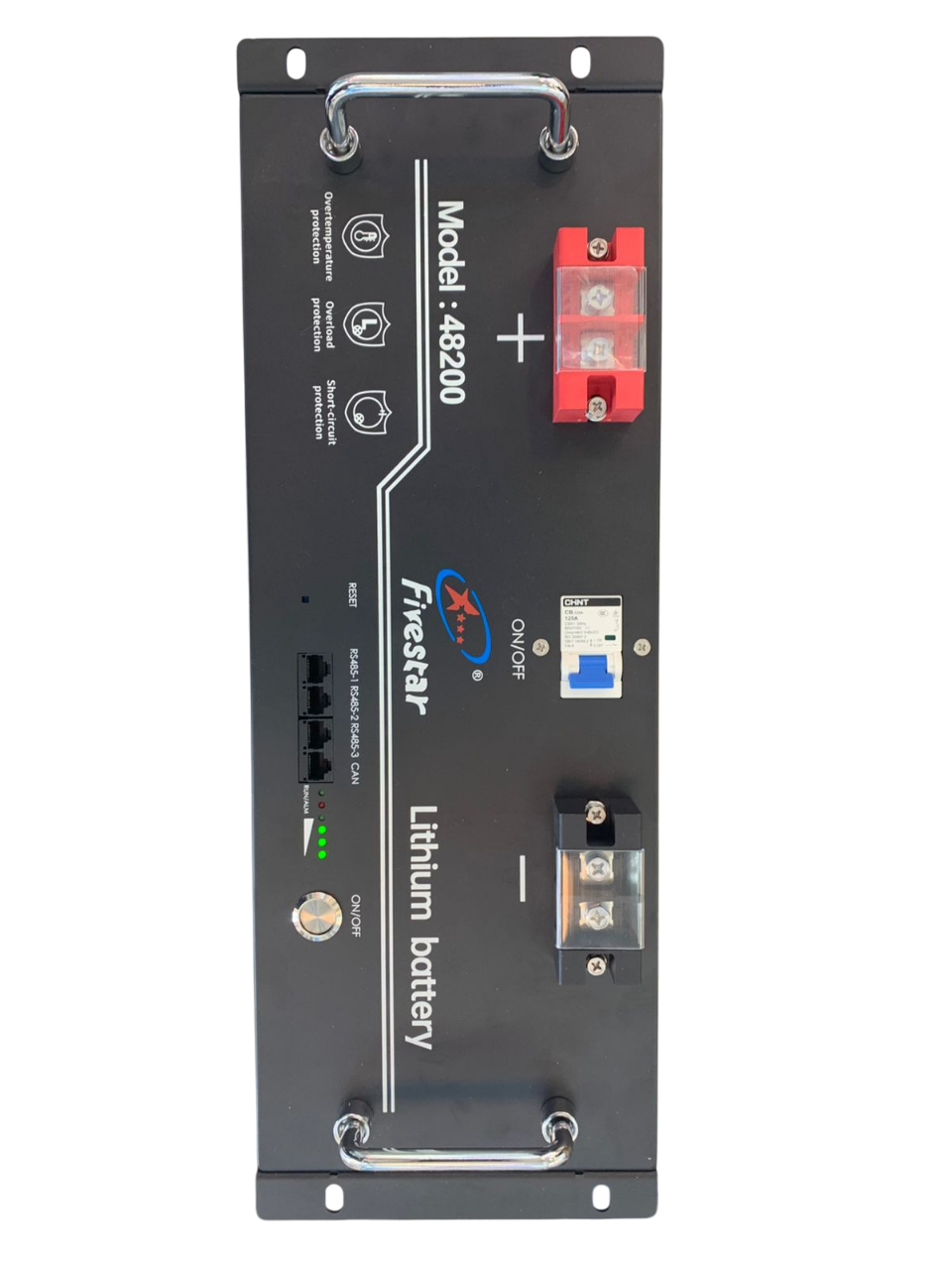

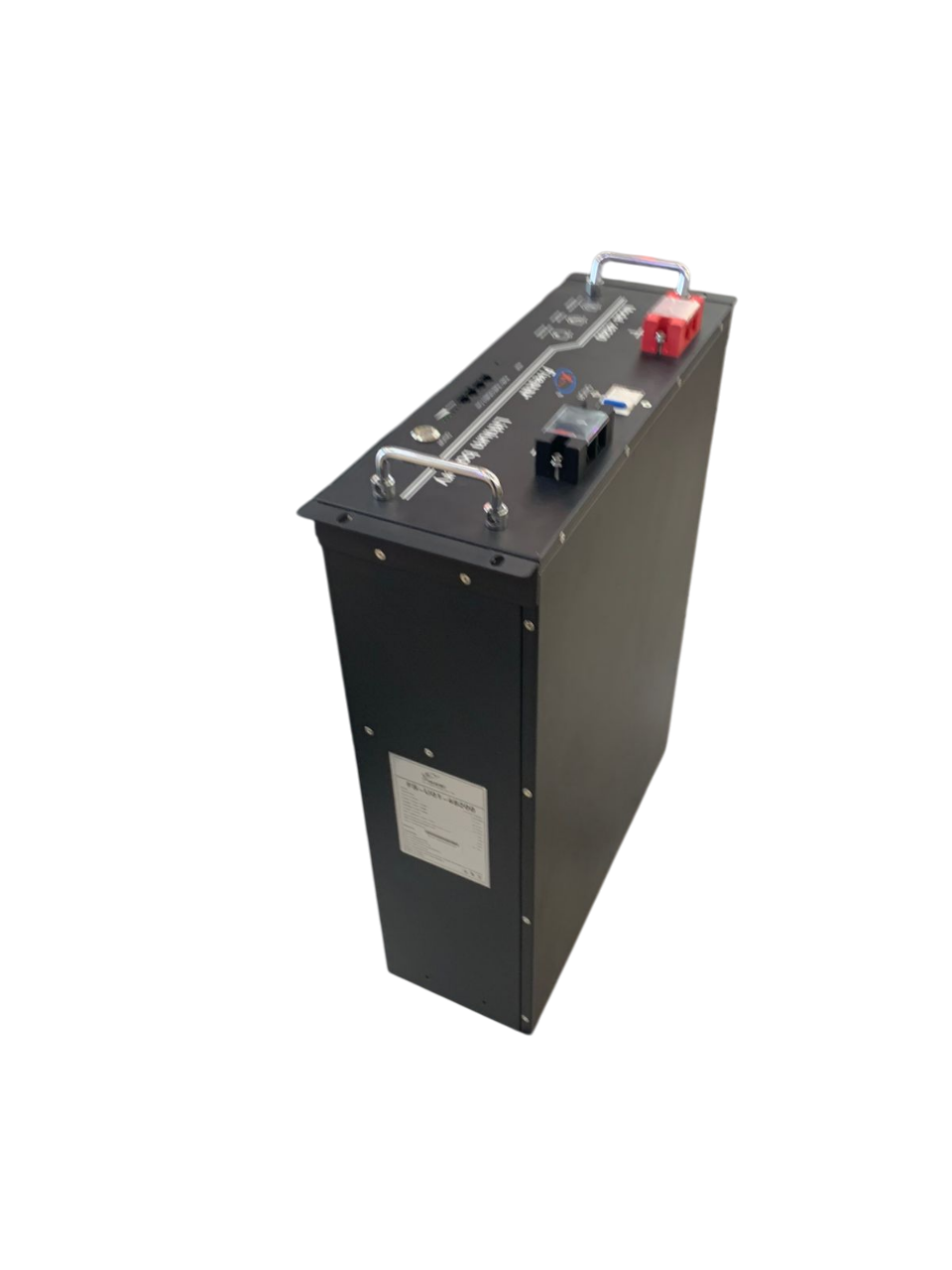

BATTERY

SPECIFICATIONS BATTERY:

Model: FS-U01-48200

Usable: Capacity: 1024WH

Rated Voltage: 51.2V

Voltage Range: 43.2-58.4

Max Continuous Discharging Current: 120A

Max Continuous Charge Current: 100A

DOD: >95%

Module Connection: Automatic Coding, up to 15 Groups of Parallel Machiner

Cycle: ≽6000

Communication: 485/CAN

2YEAR WARRANTY

Package Dimension:

Product – 635mm x 470mm x 180mm

Box – 735mm x 540mm x 250mm

NW 57.2kg

GW 67.4g

Package include:

1 x FS-U01-48200 High Quality Lithium-ion Battery

1 x Communication Cable

2 x battery Cable Red + Black

4 x Mounting Screw

1 x Wall Mounting Bracket

1 x Manual Book

COMBO INCLUD

1 x GF- 8kva- 6200W 48v MPPT Hybrid Inverter (1year Warranty)

1 x 10kw 51.2V Lithium-ion Battery (2years Warranty)

1 x WiFi Dongle

8 x 650W Mono Solar Panels Fivestar (25years Warranty)

• Battery Cables And Brackets Included

Courier for panels are at your own risk

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
